Type: iso 5211 ball valve Place of Origin: Zhejiang, China Brand Name: SINPO Application: General Temperature of Media: High Temperature, -10~120℃ Power: Manual Port Size: 1/4 to 3 inch | Structure: Ball Valve Sealing: PTFE Body material: CF8(304) or CF8M(316) Stem: SS 304 or SS 316 Standard: ANSI, JIS, GB, DIN Certificate: CE, RoHS, ISO9001, TUV Suitable Medium: Water, Oil, Steam, Liquid, etc |
Supply Ability
10000 Piece/Pieces per Month
Packaging Details
Each ss ball valve is packed into a plastic bag, then packed into inner box and carton, finally packed into plywood cases or pallets.
Port
Ningbo, Shanghai, etc
Lead Time
Most of the products are in stock, and it takes 15-25 days for products that are not in stock.

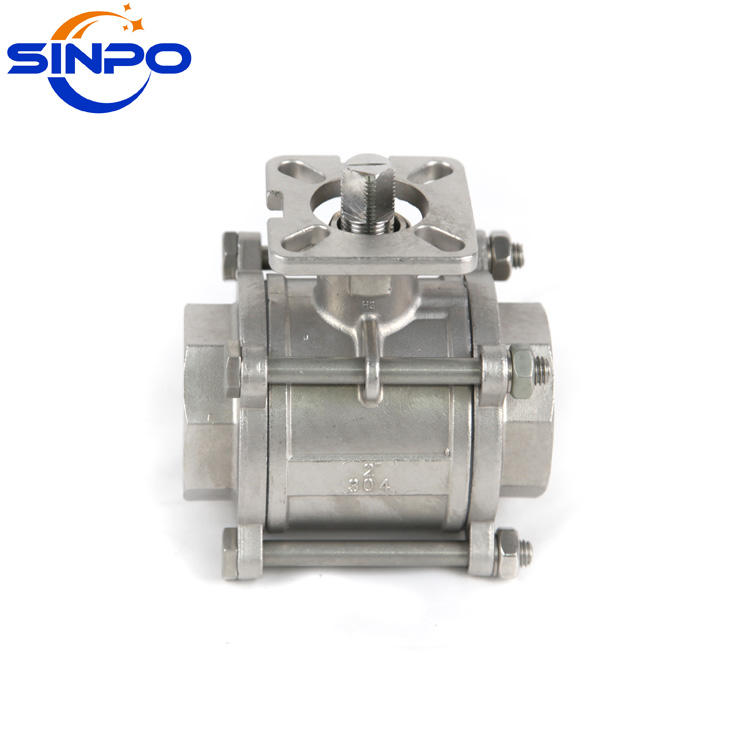

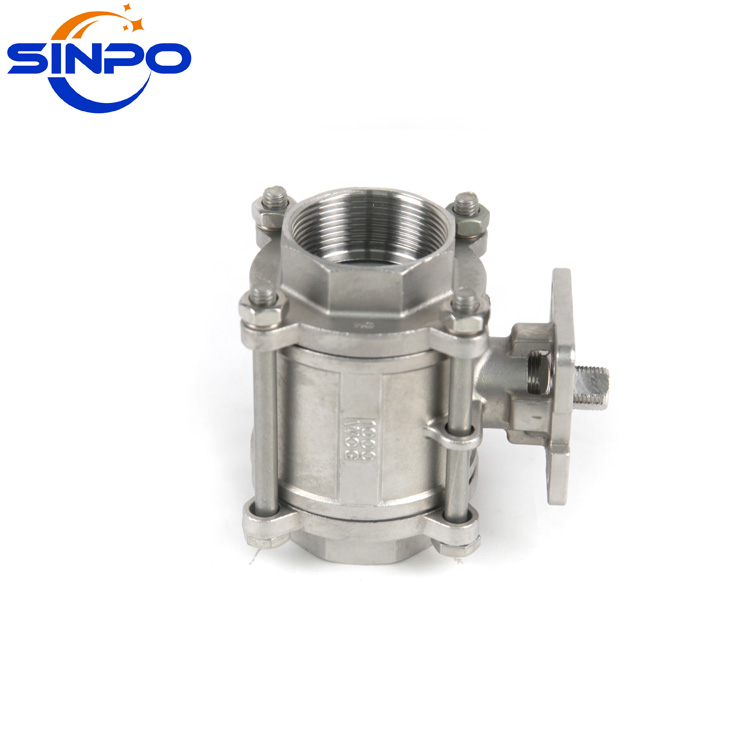

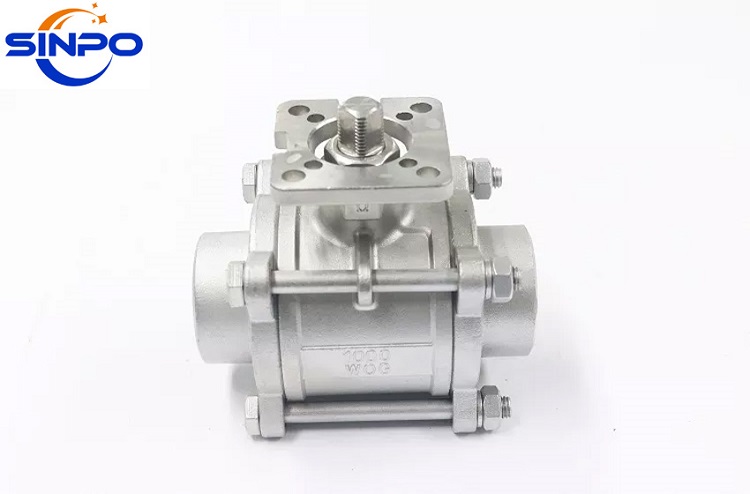

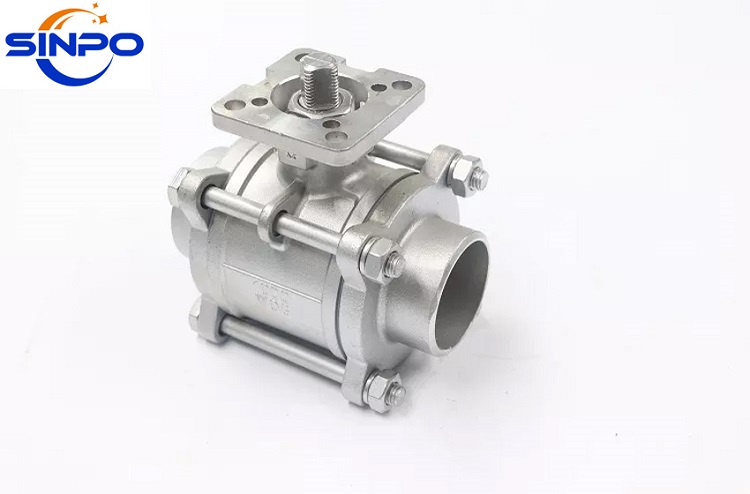

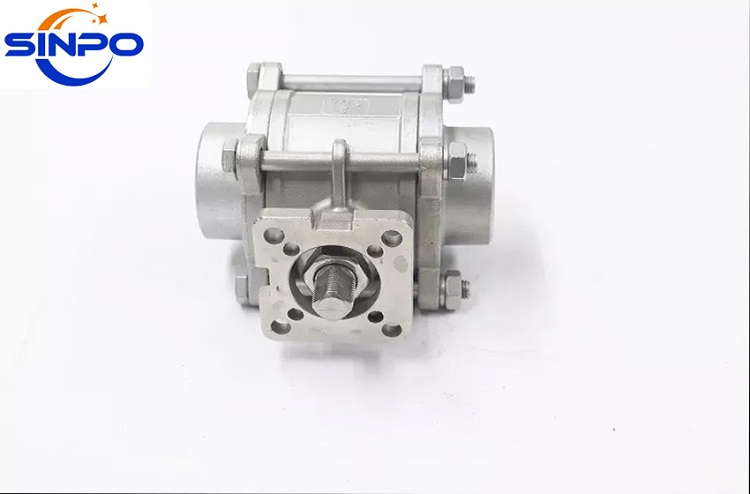

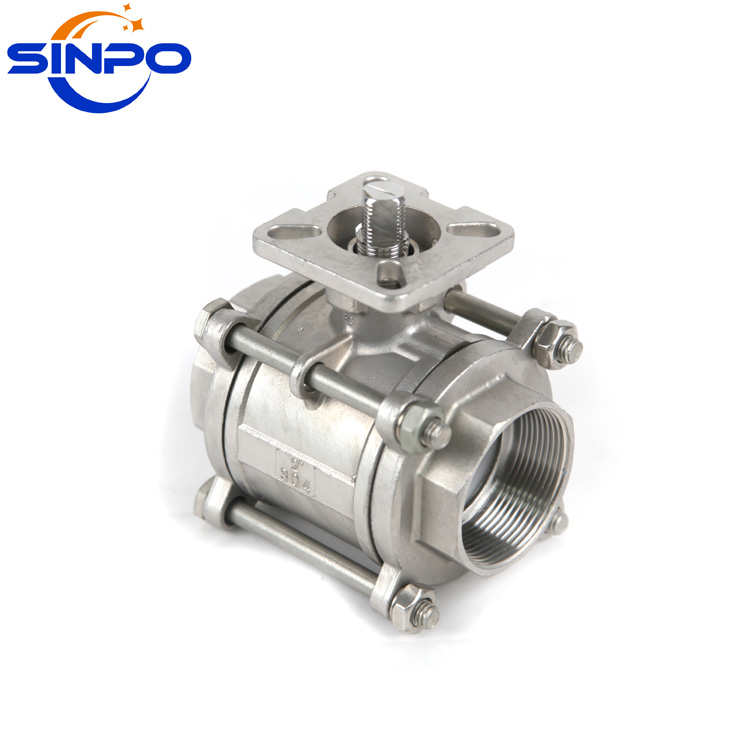

Joy Valve insists on producing high-quality valves for 20 years. We have our own factory and are your reliable supplier. We focus on product details and carefully build each 3pc threaded ball valve with iso5211 mounting pad.
Mounting Standard | ISO5211 mounting for electric actuator and pneumatic actuator |
Connection | BSP, BSPT, DIN2999, NPT |
Material | Stainless Steel, WCB |
Pressure | 0 to 64 bar |
Medium Temperature | -10 to 120℃ |
Mediums | Water, oil, air, gas, and other mediums |

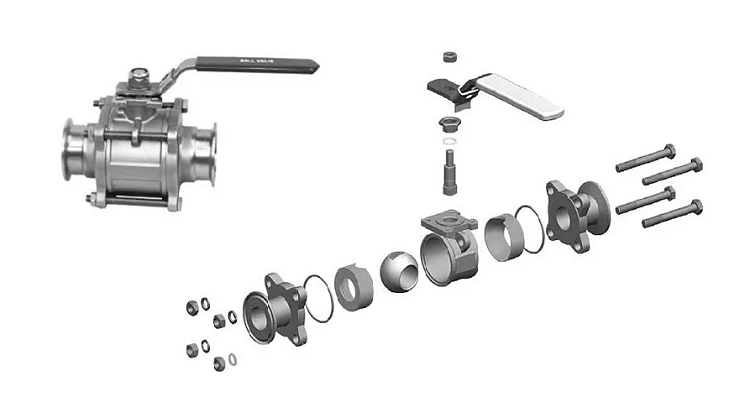

Materials

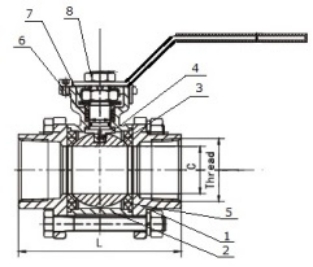

No. | Part Name | Material | No. | Part Name | Material |
1 | Bonnet | SS304, SS316 | 5 | Sealing | PTFE, PPL, etc |
2 | Body | SS304, SS316 | 6 | Packing | PTFE |
3 | Ball | SS304, SS316 | 7 | Gland | SS201 |
4 | Stem | SS304, SS316 | 8 | Nut | SS201 |
Dimensions
Size | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" |
L | 69 | 69 | 63 | 71 | 80 | 97 | 100 | 126 | 168 |
Wt.(kg) | 0.67 | 0.6 | 0.48 | 0.6 | 0.8 | 1.25 | 1.62 | 2.4 | 4.7 |
NOTES: As we are constantly to improve the valve performance, so we keep the right to make alteration from time to time.
iso 5211 ball valve use a solid ball to prevent backflow of liquids or gases. With a 90-degree rotation action, it can be closed tightly with only a 90-degree rotation operation and a small turning torque.
Our Ball Valve are easy to operate, maintain, durable, warranted and affordable, and are widely used in petroleum, chemical, urban water supply and drainage and other industries.
Joy Valve is a high-tech integrated enterprise that specialized in valve R&D, manufacturing, sales. Our company is located in valve township- Yuhuan, Taizhou, Zhejiang, with an area of 10000 square meters. Our main products are floating valve, ball valve, ISO tank parts, gate valve, globe valve, check valve and pipe fittings, what's more, we can manufacture customized valves and fittings according to customer's sample and request!
1. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
2. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
3. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
4. Can I request to change the form of packaging and transportation?
A: Yes, we can change the form of the packaging and transportation as per your request, but you have to bear their own costs incurred during this period and the spreads.
5. Where is your factory located?
A: Our factory is located in Taizhou City, China.

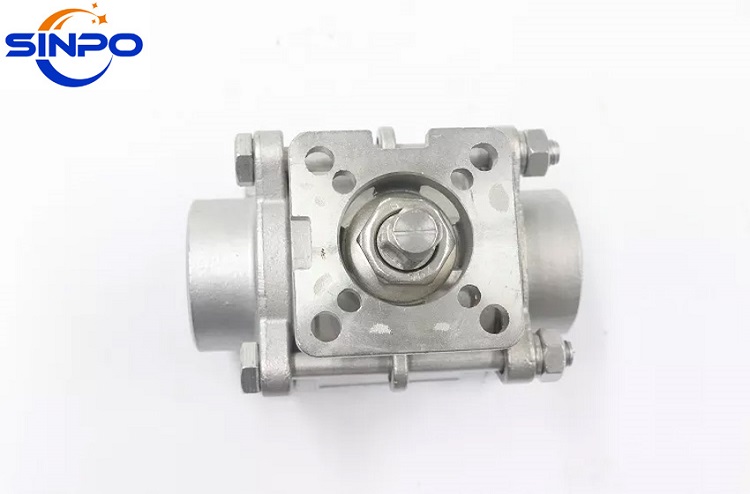

We offer 3 Piece Ball ValveA ball valve is a valve with a spherical disc, the part of the valve which controls the flow through it. They also incorporate an ISO 5211 actuator mounting pad that allows for an actuator to be installed directly on valve without using a bracket or coupling.
