Introduction

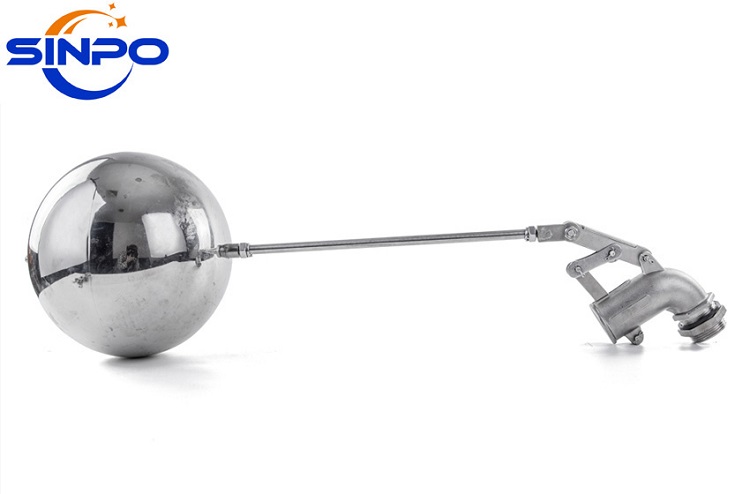

Cooling tower threaded float valve is a valve widely used in cooling towers. Because of its unique advantages in saving resources, improving efficiency, and reducing maintenance costs, it is loved by many of our customers. The stainless steel material used not only has corrosion resistance, but also has the characteristics of high strength, so it can prevent deformation or even damage due to excessive force under high temperature, high pressure and other harsh environments. On the other hand, it uses high-hardness rubber material as the seal, which has the characteristics of fire prevention, corrosion resistance, high temperature resistance, and anti-static, thereby effectively preventing disasters caused by pipeline leakage. This threaded float valve has an efficient throttling adjustment function, which can better meet the requirements of various flow and pressure conditions and ensure the safe operation of the system. We offer high flow float valves that you can count on for a long time, order now for competitive prices!
Features
1. Made of high-quality stainless steel material, this cooling tower threaded float valve is durable, sturdy and anti-corrosion, so it is used in industries with complex working environments such as chemical industry, petroleum, natural gas, and metallurgy.
2. The structure of this float valve is compact, and the exposed surface is specially treated to obtain more excellent hardness, so it not only looks beautiful, but also is very wear-resistant.
3. The function of this float valve is mainly to cut off, distribute and change the flow direction of the medium. Due to its high sensitivity, the flow of the medium can be effectively controlled to save resources.
4. This float valve has the function of fire prevention and static electricity, and is also equipped with an automatic pressure relief locking device, so it can prevent the pipeline from fire or burst in an all-round way.
5. This cooling tower threaded float valve is easy to operate and easy to replace, which can greatly reduce maintenance costs and workload, because it uses threaded connection.
Type: stainless float valve Place of Origin: Zhejiang, China Brand Name: SINPO Temperature of Media: High Temperature, -10~100℃ Material: SS304 Size: 1/2"-2" Connection Mode: Thread | Gasket/Seal: EPDM, SILICONE, Viton Standard: DIN/SMS/ISO/IDF/3A/RJT/BPE Packing Method: Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. Shipment Way: By express,by air or by sea,as customer request Application scope: Dairy, food, beer, beverage, pharmacy, cosmetic, water etc |

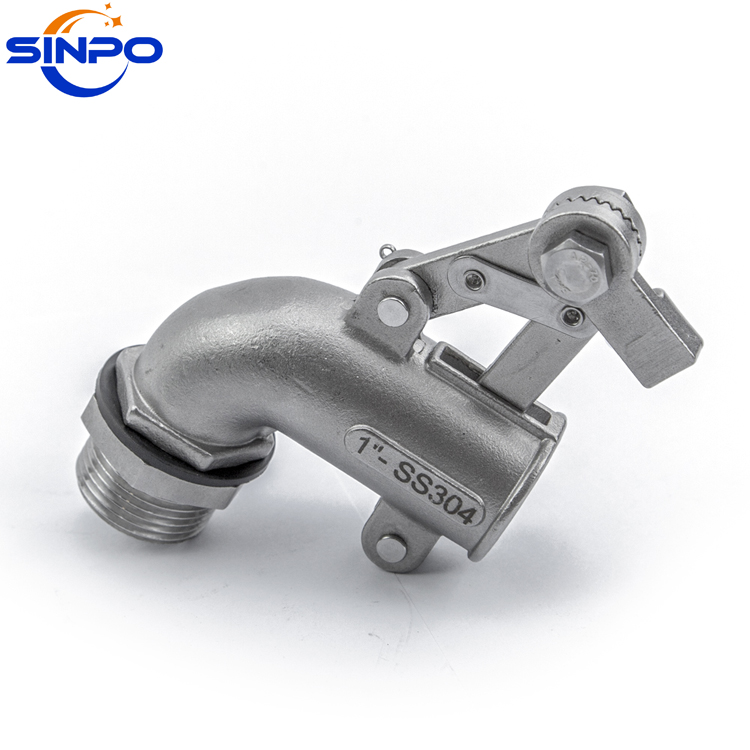

Materials
No. | Part Name | Material | No. | Part Name | Material |
1 | Body | SS304,SS316 | 7 | Pin | SS304,SS316 |
2 | Lock nut | SS304,SS316 | 8 | Level | SS304,SS316 |
3 | Gasket | NBR | 9 | Nut | SS304,SS316 |
4 | Sealing | Silicone, NBR | 10 | Ball | SS304,SS316 |
5 | Plug | POM | 11 | Regulator | SS304,SS316 |
6 | Stem | SS304,SS316 |

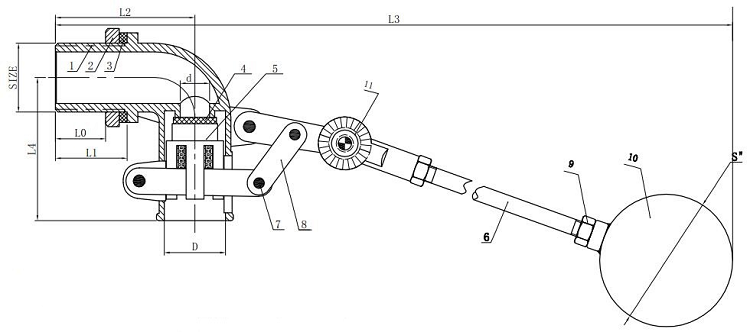

Dimensions
Size | L0 | L1 | L2 | L3 | L4 | d | D | S |
1/2" | 17 | 25 | 50 | 400 | 47 | 8.5 | 18 | 115mm |
3/4" | 19 | 27 | 54 | 500 | 54 | 11 | 23 | 135mm |
1" | 19 | 28 | 55 | 530 | 70 | 16 | 30 | 150mm |
1 1/4" | 19 | 30 | 70 | 750 | 92 | 20 | 42 | 200mm |
1 1/2" | 24 | 36 | 75 | 760 | 95 | 23 | 42 | 200mm |
2" | 25 | 37 | 80 | 820 | 115 | 28 | 50 | 230mm |
Our products will be processed after initial production, and will only be shipped after strict inspection.
Each product is packed into a plastic bag, then packed into inner box and carton, finally packed into plywood cases or pallets.
We operate with integrity, competitive prices and professional export process services.
