Float Valve Inquiry

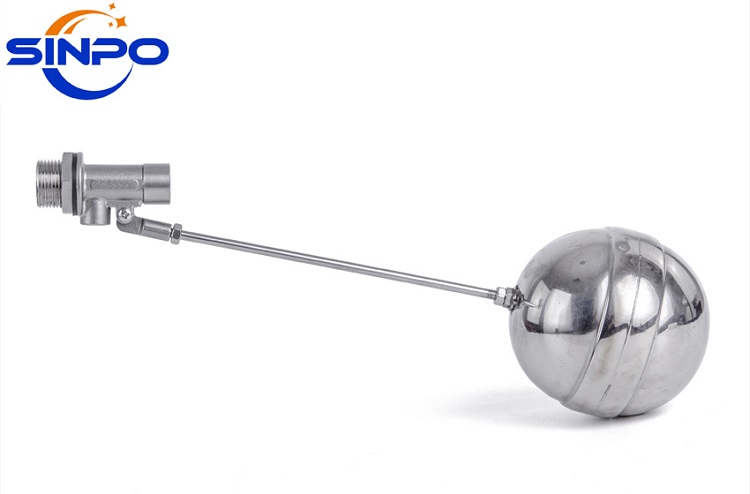

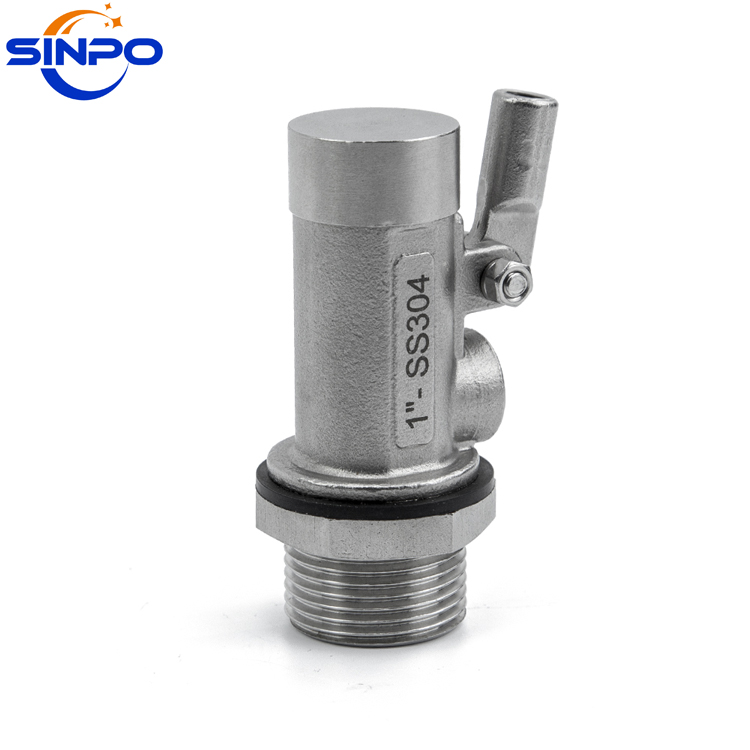

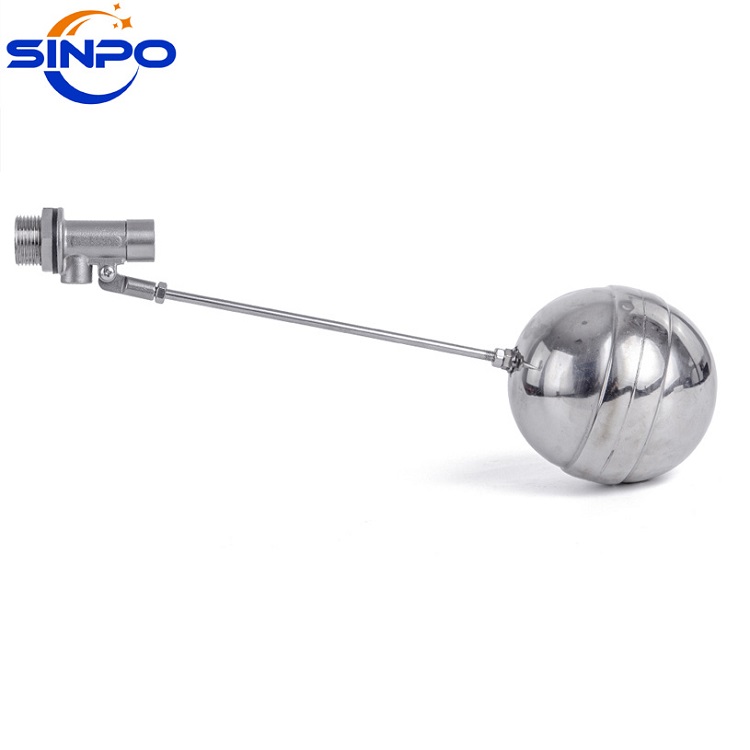

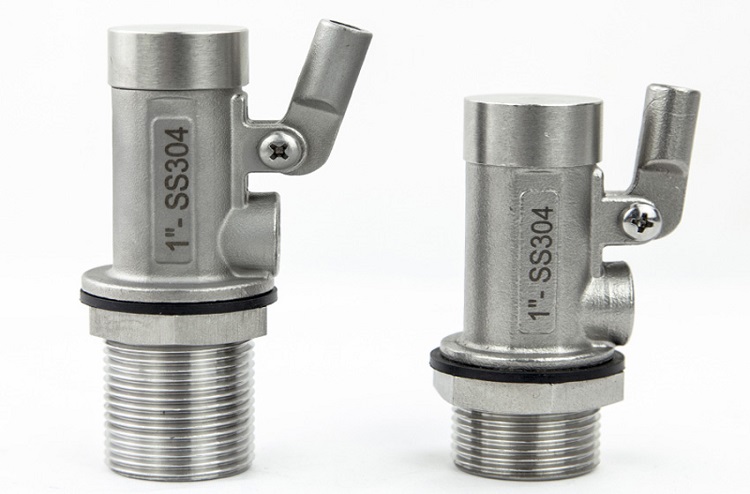

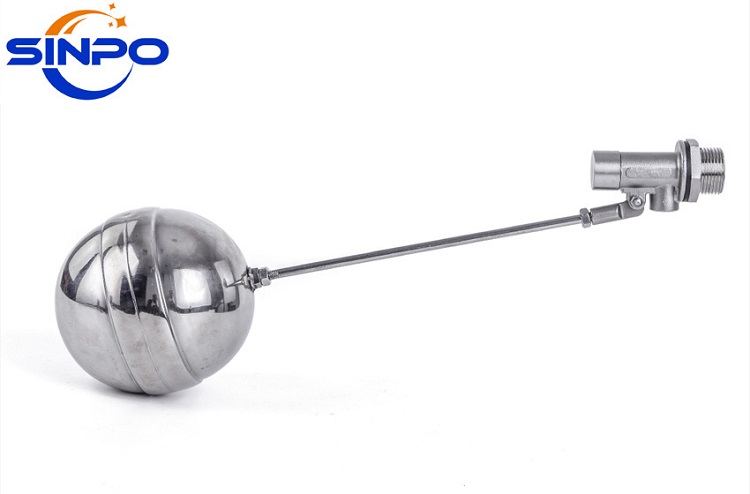

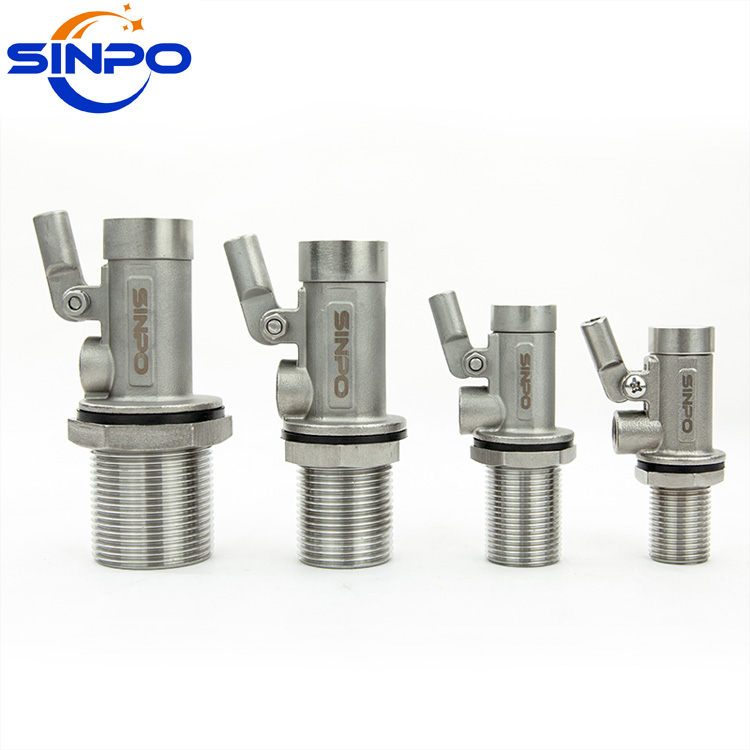

Water Trough Float Valve

Quick Details

Type: modulating float valve

Place of Origin: Zhejiang, China

Brand Name: SINPO

Temperature of Media: High Temperature, -10~100℃

Port Size: 1/2 to 2 inch

Body material: CF8(304) or CF8M(316)

Standard: ANSI, JIS, GB, DIN

Certificate: CE, RoHS, ISO9001, TUV

Suitable Medium: Water, Oil, Steam, Liquid, etc

Products Description

Water Trough Float Valve is an essential component of a water trough system that helps regulate the water level. It is crucial for the efficient and effective watering of livestock and other animals. The valve ensures that the water level is maintained, and the animals have access to clean water at all times.

One of the significant advantages of the Water Trough Float Valve is its automatic shut-off feature. This feature stops the water flow once the water level reaches the required level, preventing any wastage of water. It also ensures that the trough does not overflow, which can lead to water wastage, slippery conditions, and accidents.

Another benefit of the Water Trough Float Valve is its durability. Made from high-quality materials such as stainless steel, the valve can withstand harsh weather conditions and frequent usage. This ensures that the valve is long-lasting and saves you money in the long run by reducing the need for frequent replacements.

The Water Trough Float Valve is easy to install and maintain, making it a practical solution for animal farmers. Its simple design makes it easy to clean and requires minimal maintenance. It is also cost-effective, which is a bonus for farmers who are trying to maximize their profits.

In conclusion, the Water Trough Float Valve is an essential component of a water trough system. Its automatic shut-off feature, durability, ease of installation and maintenance, and cost-effectiveness make it a practical solution for animal farmers. Farmers who use this valve can rest assured that their livestock have access to clean water at all times, which is vital for their health and wellbeing.

Joy Valve insists on producing wonderful valves for 20 years. We have our personal manufacturing facility and are your dependable supplier. The water trough drift we promote are strictly selected, crafted with ingenuity, and trustworthy!

water trough threaded float valve-Product Description(1).jpg

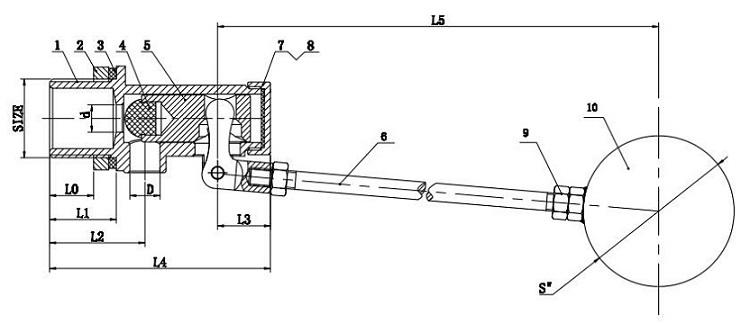

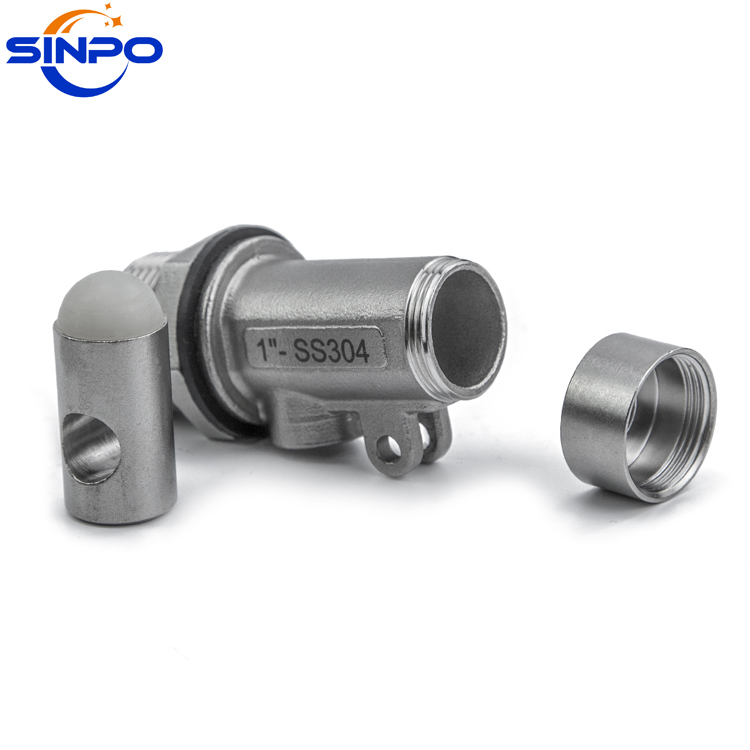

Materials:

No.

Part Name

Material

1

Body

SS304

2

Lock Nut

SS304

3

Gasket

NBR

4

Plug

SI, NBR

5

Piston

SS304

6

Stem

SS304

7

Sealing

PTFE

8

Cap

SS304

9

Nut

SS304

10

Ball

SS304

Dimensions:

Size

L0

L1

L2

L3

L4

L5

d

D

S

1/2”

14

21

30

24

70

275

8

10

110mm

3/4”

15

22

31.5

24

70

275

10

12

110mm

1”

18

28

41

29

90

350

15

16

135mm

1 1/4”

20

31

44

29

94

370

15

16

150mm

1 1/2”

22

32

49

38

115

480

22

24.5

225mm

2”

25

36

57

40

128

500

27

28

250mm

Product Feature and Applications

Stainless Steel Float Valve is utilized to construction, electrical conduit, agricultural irrigation, industrial sewage and different initiatives using.

1) Cold and hot water supply systems for civil and industrial constructions, (residential buildings, hospitals, hotels, school and office buildings etc.)

2) Drinking water systems and food industry pipe works

3) Irrigating system for gardens and green houses.

4) Public and sport facilities such as swimming pools and stadiums

water trough threaded float valve-product feature111.jpg

Company Profile

Joy Valve centered in 2003, is a main organisation in the discipline of valves. Since its establishment, Sinpo has been imparting complete help to the customers of valves at domestic and overseas with main technology, sturdy overall performance merchandise and excellent service, and has mounted a main function in the valve enterprise with exceptional quality, dependable reliability and serious and accountable working attitude.

water trough threaded float valve-company profile.jpg

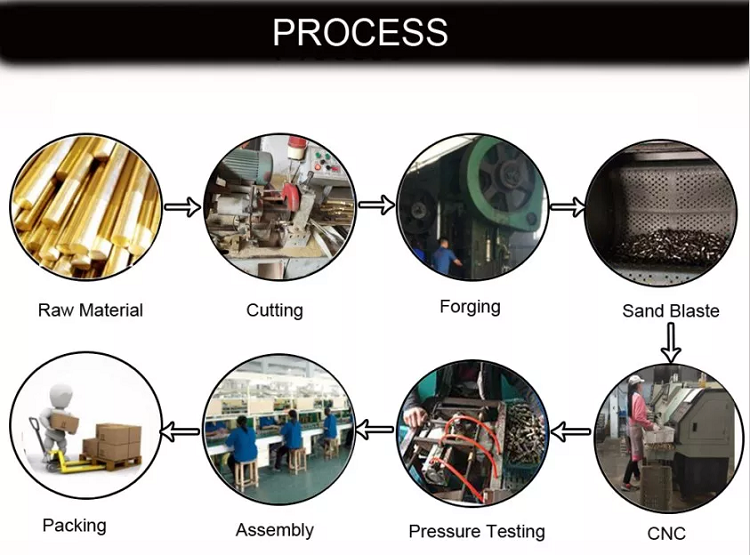

Production Process

Quality is priority. Our human beings constantly connect exceptional significance to quality. Controlling from the manufacturing commencing to the end. We have well-trained and expert employees and strict QC device in every manufacturing link. And every product has to be one hundred percent inspected earlier than shipment.

water trough threaded float valve-Production Process.png
