Product Introduction

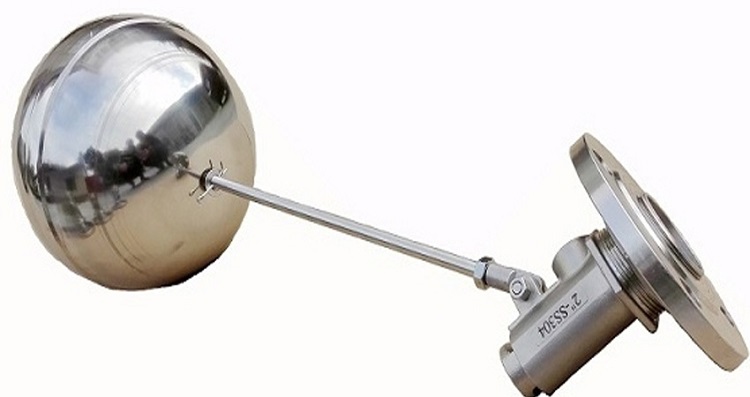

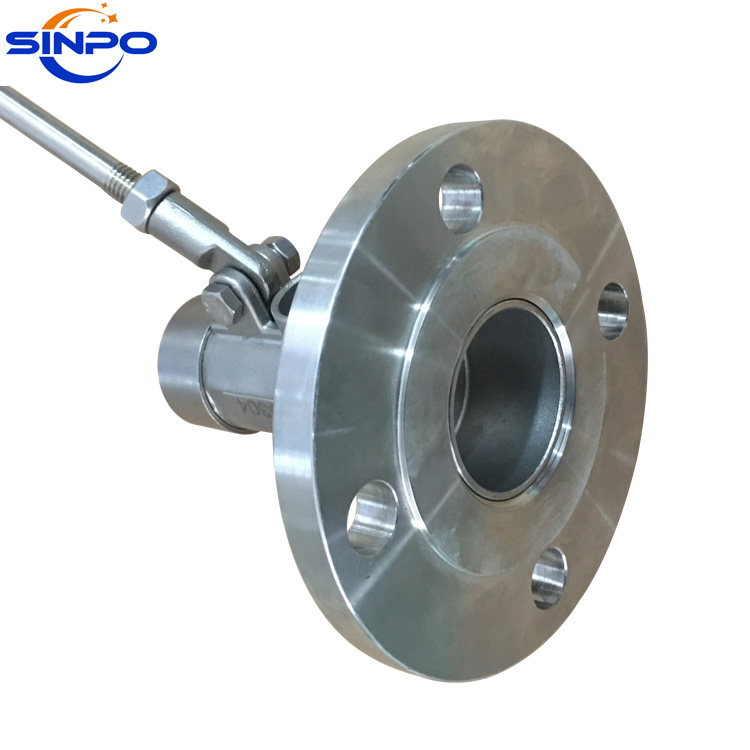

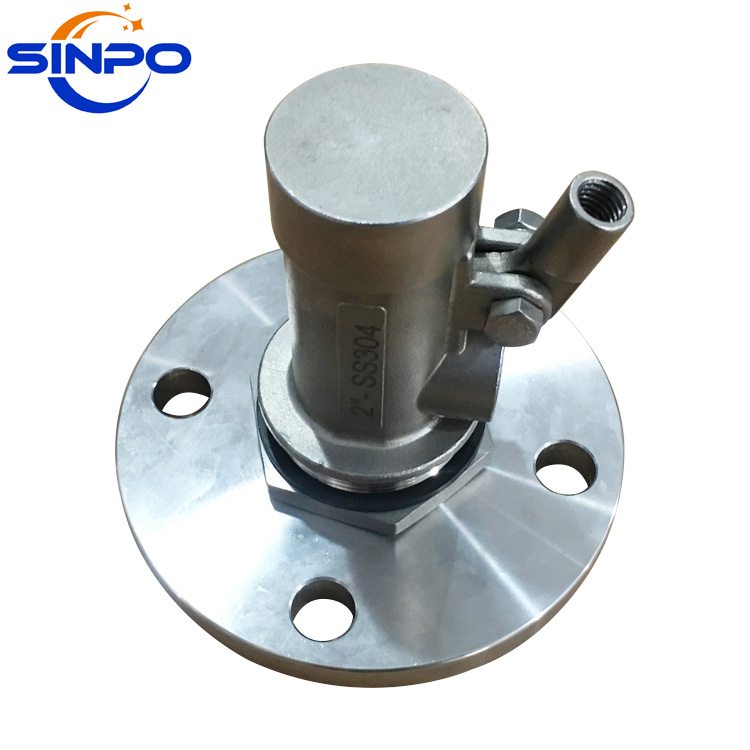

This water tank flanged float valve is a flow regulator used in water tanks, water towers and other equipment. It mainly controls the water level of the equipment by adjusting the water in and out of the water tank. It is made of stainless steel, which has the characteristics of corrosion resistance, oxidation resistance and high temperature resistance, so it has a long service life in humid, high temperature and corrosive environments. With flange construction, this float valve is easy to install and also allows for quick disassembly and maintenance, which means it can help you save a lot of money during its service life. This float valve has a wide range of applications and can be used in construction, factory fire protection systems, irrigation, water conservancy projects, pharmaceuticals, chemicals and other industries. Welcome customers in need to come to discuss cooperation with us, we can provide a variety of customized services!
Features
1. This float valve can resist the pressure of 0-6bar, so it can be used for a long time in large-scale industrial production and is not easy to wear, with high safety in use.
2. This water tank flanged float valve can automatically control the water flow, so even if the personnel are not on site, the water supply can be completed automatically, which saves labor costs and achieves a reasonable use of water resources.
3. As a compact, high-performance, full-flow float valve, this product can meet the self-filling needs of medium to large or high-demand tanks, tanks and tanks, so it is highly economical.
4. This float valve can maintain excellent structural stability in the temperature range of -10 to 100°C because it is made of high-strength stainless steel and has also undergone surface hardening treatment.
Type: auto fill float valve Place of Origin: Zhejiang, China Brand Name: SINPO Application: General Temperature of Media: High Temperature, -10~100℃ Power: Manual | Port Size: 1 1/2 to 8 inch Body material: CF8(304) or CF8M(316) Standard: ANSI, JIS, GB, DIN Certificate: CE, RoHS, ISO9001, TUV Suitable Medium: Water, Oil, Steam, Liquid, etc |
10000 Piece/Pieces per Month
Each water tank flanged float valve is packed into a plastic bag, then packed into inner box and carton, finally packed into plywood cases or pallets.
Port
Ningbo, Shanghai, etc
Lead Time
Most of the products are in stock, and it takes 15-25 days for products that are not in stock.
Specification
Connection | Flanged end |
Material | Stainless Steel |
Pressure | 0 to 6 bar |
Medium Temperature | -10 to 100℃ |
Mediums | Water, oil, air, gas, and other mediums |
Materials
No. | Part Name | Material | No. | Part Name | Material |
1 | Body | SS304,SS316 | 7 | Nut | SS304,SS316 |
2 | Lock nut | SS304,SS316 | 8 | Nut | SS304,SS316 |
3 | Flange | SS304,SS316 | 9 | Nut | SS304,SS316 |
4 | Plug | Silicone, NBR | 10 | Nut | SS304,SS316 |
5 | Piston | SS304,SS316 | 11 | Ball | SS304,SS316 |
6 | Stem | SS304,SS316 |

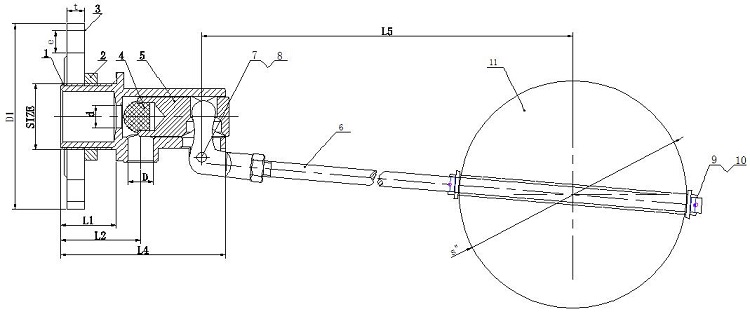

Dimensions
Size | D1 | t | e | L1 | L2 | L4 | L5 | d | D | S |
1 1/2" | 140 | 13 | 18 | 35 | 54 | 120 | 450 | 21 | 21 | 220mm |
2" | 155 | 13 | 18 | 40 | 72 | 130 | 450 | 27 | 27 | 250mm |
2 1/2" | 175 | 15 | 18 | 42 | 80 | 150 | 540 | 37 | 37 | 300mm |
3" | 190 | 15 | 18 | 48 | 95 | 170 | 650 | 47 | 47 | 380mm |
4" | 210 | 17 | 18 | 55 | 110 | 195 | 650 | 60 | 60 | 380mm |
6" | 280 | 19 | 23 | 55 | 110 | 195 | 780 | 60 | 60 | 380mm |
8" | 330 | 19 | 23 | 55 | 110 | 195 | 780 | 60 | 60 | 380mm |
Note: Flange can be customized according to customers' requirements.
Why Choose Us
Our company has many years of valve production experience, worthy of your trust!
