Float Valve For Water Tank

General Infomation:

When it comes to managing a water tank, one of the key components you need is a reliable float valve. Designed to regulate the water level in your tank, these valves are critical in ensuring that you have an adequate water supply for everyday use.

Float valves work by using a buoyant object, such as a ball or cylinder, that is attached to a lever or arm. When the water level in the tank drops below a certain point, the buoyant object will sink, and the lever will activate the valve, allowing more water to flow into the tank. As the water level in the tank rises, the buoyant object will float back up, and the valve will shut off, preventing any overflow.

There are many benefits to using a float valve in your water tank. Firstly, it takes the guesswork out of managing water levels, so you don't have to worry about manually filling the tank or monitoring the water level. This can save you time and effort, and give you peace of mind knowing that your tank will always have enough water.

Secondly, float valves are designed to be durable and long-lasting, which means you won't have to replace or repair them frequently. This can save you money in the long run and ensure that your water tank continues functioning properly for years to come.

Finally, float valves are easy to install and maintain, which makes them an ideal solution for homeowners and businesses alike. With the right installation and regular maintenance, you can ensure that your water tank remains in excellent condition, and you can enjoy reliable access to fresh water whenever you need it.

In conclusion, a float valve for your water tank is an essential component that you can't afford to overlook. It offers a reliable and efficient way to manage water levels, it's durable and easy to maintain, and it's an excellent investment for your home or business. So, if you're looking for ways to improve your water management system, consider installing a float valve today.


Type: float valve for water tank

Place of Origin: Zhejiang, China

Brand Name: SINPO

Application: General

Temperature of Media: High Temperature, -10~100℃

Power: Manual

Port Size: 1/2 to 4 inch

Body material: CF8(304) or CF8M(316)

Standard: ANSI, JIS, GB, DIN

Certificate: CE, RoHS, ISO9001, TUV

Suitable Medium: Water, Oil, Steam, Liquid, etc

Products Description

Joy Valve insists on producing brilliant valves for 20 years. We have our personal manufacturing unit and are your dependable supplier. Float valve is one of our famous products, and flow valve for water tank is one of them.

water tank threaded float valve-Product Description(1).jpg

Materials:

No.

Part Name

Material

No.

Part Name

Material

1

Body

SS201,SS304,SS316

7

Nut

SS304, SS316

2

Lock nut

SS201,SS304,SS316

8

Screw

SS304, SS316

3

Sealing

NBR

9

Nut

SS304, SS316

4

Plug

Silicone, NBR

10

Ball

SS201,SS304,SS316

5

Piston

SS201,SS304,SS316




6

Stem

SS201,SS304,SS316

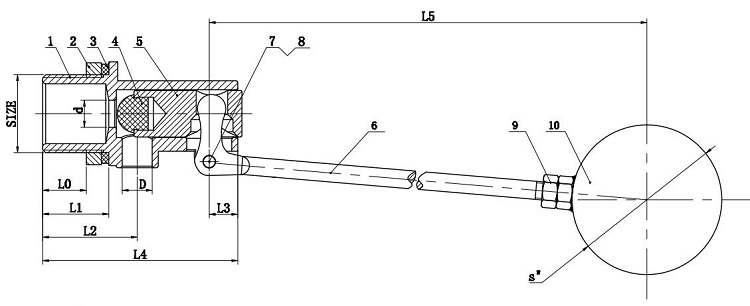

Dimensions:

Size

L0

L1

L2

L3

L4

L5

d

D

S

1/2”

13

22

30

10

65

250

7

8.5

110mm

3/4”

13

22

31

10

65

250

8

10

110mm

1”

19

30

42

15

89

320

13

13

135mm

1 1/4”

22

31

43

15

89

380

15

15

150mm

water tank threaded float valve-Product Description.jpg

Dimensions

Size

L0

L1

L2

L3

L4

L5

d

D

S

1 1/2"

27

36

53

22

110

450

21

21

230mm

2"

30

39

61

22

120

450

27

27

250mm

2 1/2"

31

42

84

26

150

580

38

38

320mm

3"

34

48

98

26

170

620

47

47

380mm

4"

40

56

113

26

195

620

60

60

380mm

Product Feature and Applications

Stainless Steel Float Valve A is designed the use of the hydraulic principle. It additionally has the traits of mild weight, small size, handy set up and maintenance, etc. It can additionally be used as an computerized water furnish device for more than a few water tanks, swimming pools and water towers in businesses and civil buildings, and can additionally be used as a circulating water grant manage valve for atmospheric boilers.

water tank threaded float valve-Product Feature and Applications111.jpg

Packaging

standard export paper carton and wooden or steel pallet.

water tank threaded float valve-Packaging111.jpg
