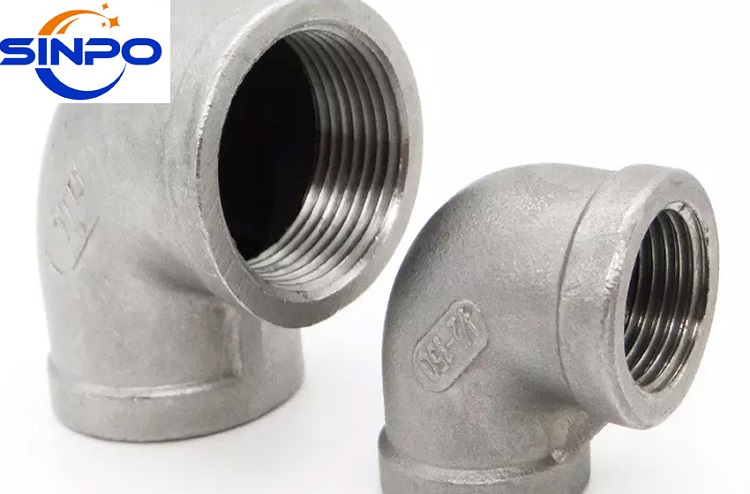

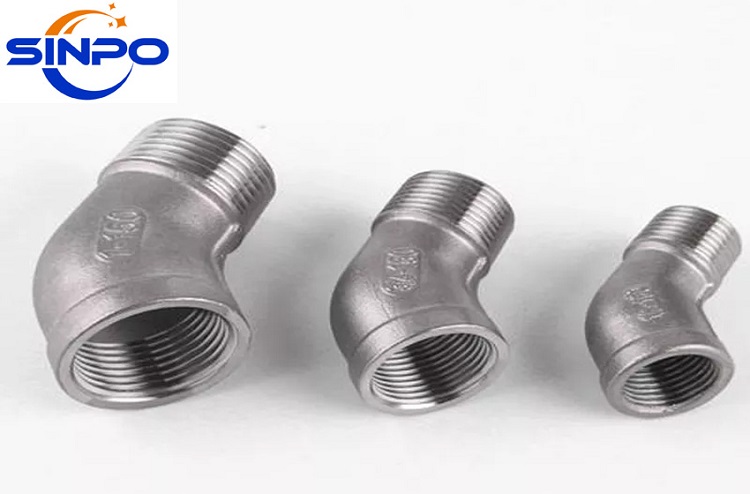

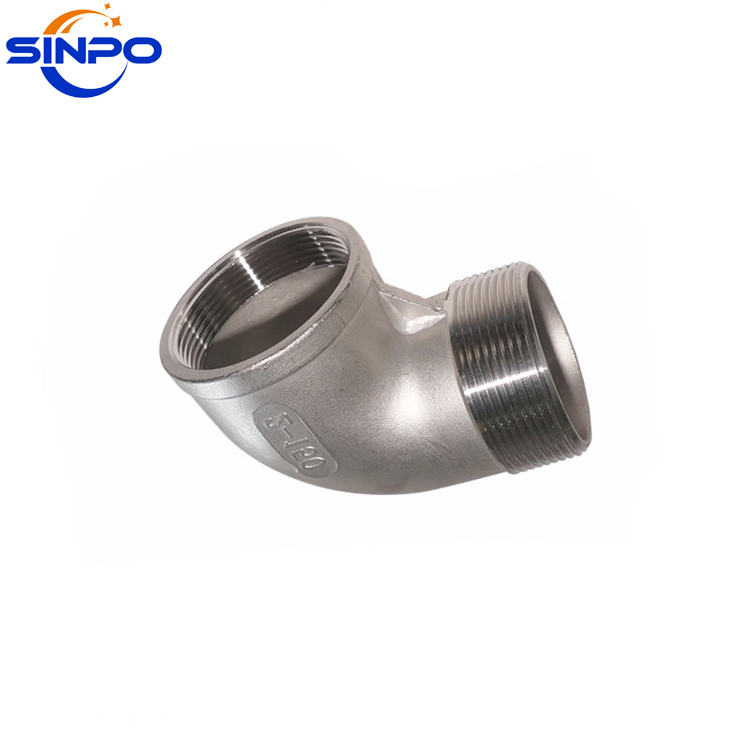

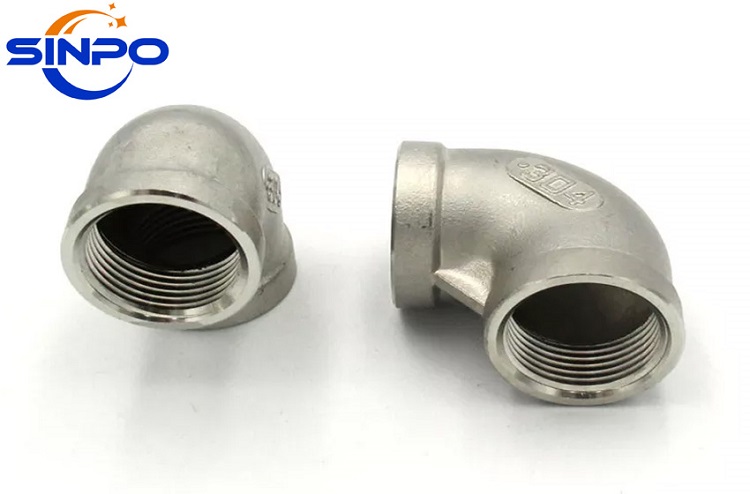

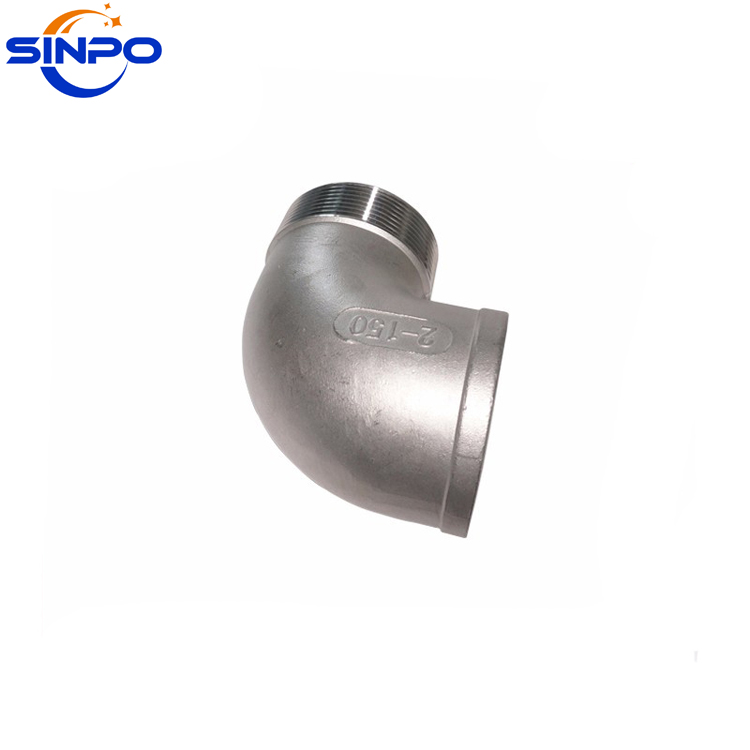

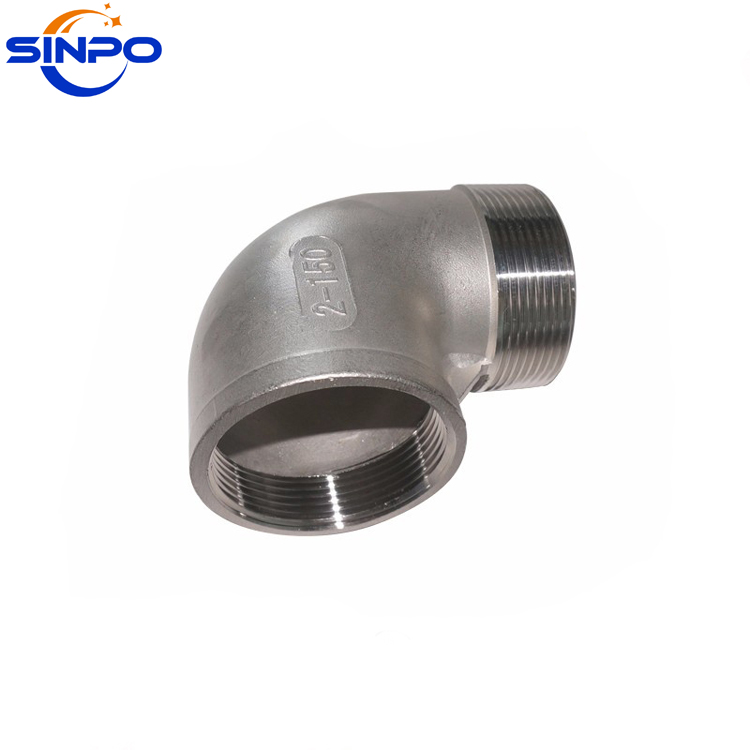

SS304 SS316 Street Elbow has perfect surface and thread, strictly complies with BSPP/BSPT/NPT/DIN standard. We have selected high-quality stainless steel as its raw material, so it has the characteristics that it will not corrode, pit, rust or wear. Due to the high connection strength, vibration resistance and extremely convenient installation of this elbow, it is very suitable for complex projects such as fire pipeline systems, air pipelines, gas pipelines, and oil pipelines. On the other hand, stainless steel has a high melting point, so this joint can support ultra-high temperature operation, and at the same time can ensure long-term temperature stability to avoid accidents caused by the deformation of the pipe material due to heat. We can provide elbows of various materials for customers to choose, such as SS304 or SS316, aiming to better meet actual needs.
Features
1. Strong corrosion resistance: stainless steel has good corrosion resistance, especially for seawater, sunlight, acid, alkali and other corrosive substances, so this elbow can avoid damage and leakage of pipelines caused by corrosion.
2. High strength: The strength of this elbow is very high, so it can withstand the pressure, impact and weight of the medium, effectively ensuring the stable and reliable operation of the pipeline.
3. Easy to process and manufacture: stainless steel material has excellent machinability, so the manufacturing difficulty of this elbow is also relatively small, which can improve production efficiency and reduce production cost.
4. Customizability: The size, connection method, material, etc. of this SS304 SS316 street elbow can be customized according to the design requirements of customers. Moreover, we can also manufacture according to customers' drawings.
Type: stainless steel street elbow Place of Origin: Zhejiang, China Brand Name: SINPO Application: General Power: Manual | Port Size: 1/8 to 4 inch Body material: CF8(304) or CF8M(316) Standard: ANSI, JIS, GB, DIN Certificate: CE, RoHS, ISO9001, TUV Suitable Medium: Water, Oil, Steam, Liquid, etc |
10000 Piece/Pieces per Month
Each product is packed into a plastic bag, then packed into inner box and carton, finally packed into plywood cases or pallets.
Port
Ningbo, Shanghai, etc
Lead Time
Most of the products are in stock, and it takes 15-25 days for products that are not in stock.

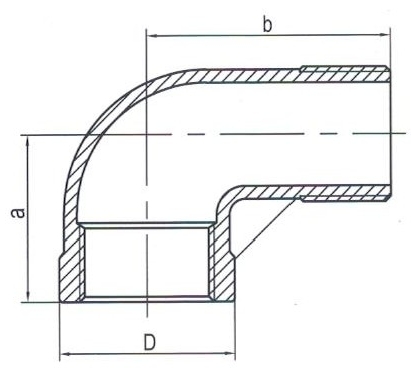

Dimensions
Size | a | b | D |
1/8" | 17 | 25 | 15 |
1/4" | 19 | 28 | 18 |
3/8" | 23 | 32 | 21.5 |
1/2" | 27 | 37 | 26.5 |
3/4" | 32 | 43 | 32 |
1" | 37 | 52 | 39.5 |
1 1/4" | 43 | 59 | 48.5 |
1 1/2" | 47 | 64 | 55 |
2" | 56 | 74 | 67 |
2 1/2" | 69 | 89 | 84 |
3" | 78 | 100 | 98 |
4" | 94 | 120 | 124.5 |

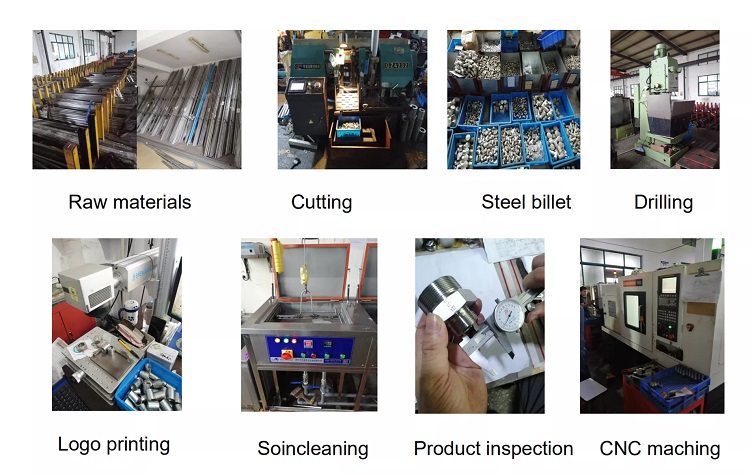

Our staff are all skilled operators, each process is strictly controlled and we have got through the third party inspection. We adopt the international advanced technology, and we have introduced dozens of advanced CNC lathes to ensure the processing technology of products.
1. Are you trading company or manufacturer ?
A: We are manufacture.
2. Can I get a sample for testing ?
A: Yes, we can provide you a sample for reference, but you may pay for the sample and shipping fee.
3. Can you provide OEM/ODM service?
A: Sure, we are ready to meet all your demands!
4. Can I print my logo on the products ?
A: Yes, we can print your logo on the products as you required.
5. Can l get a free sample from your company?
A: Of course, you just need to pay the courier fee if the sample we have in stock.
