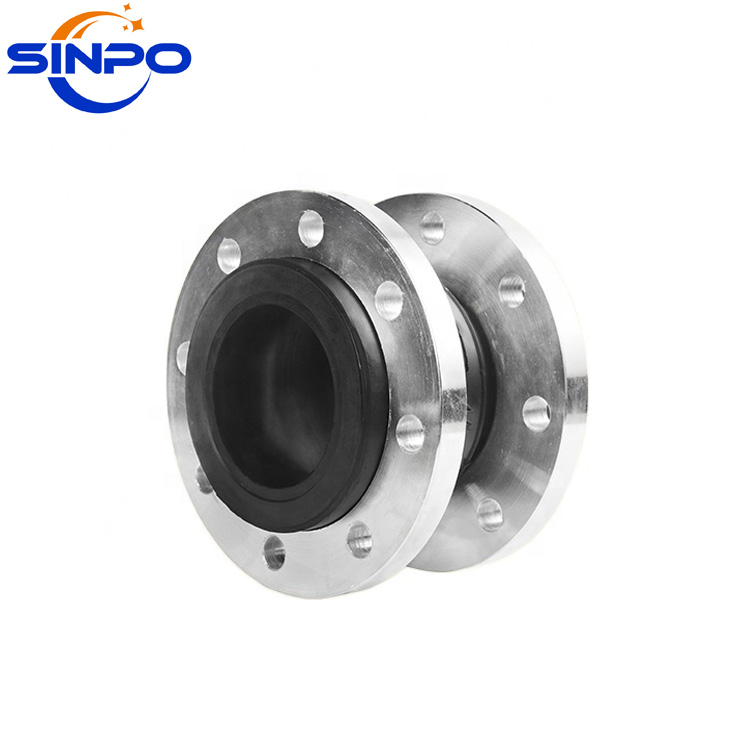

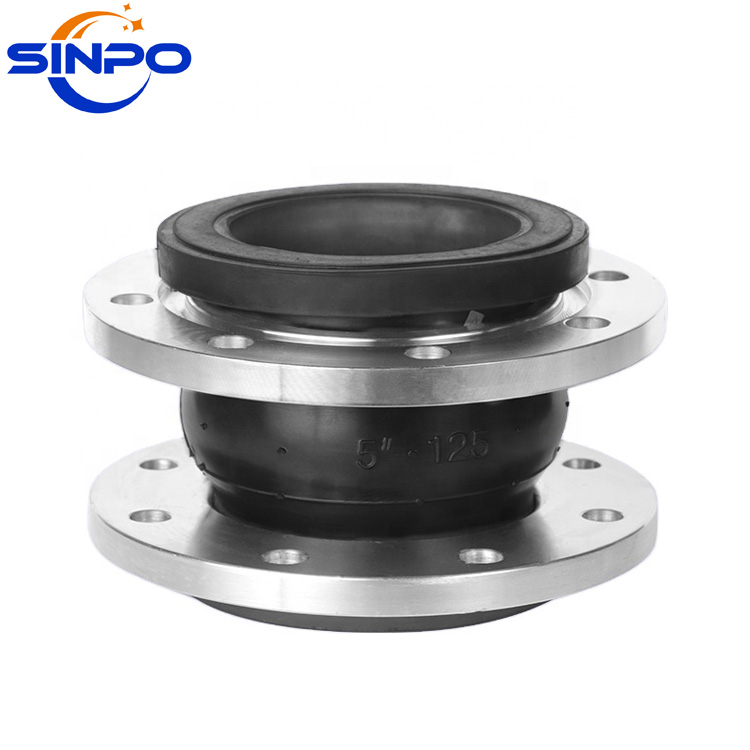

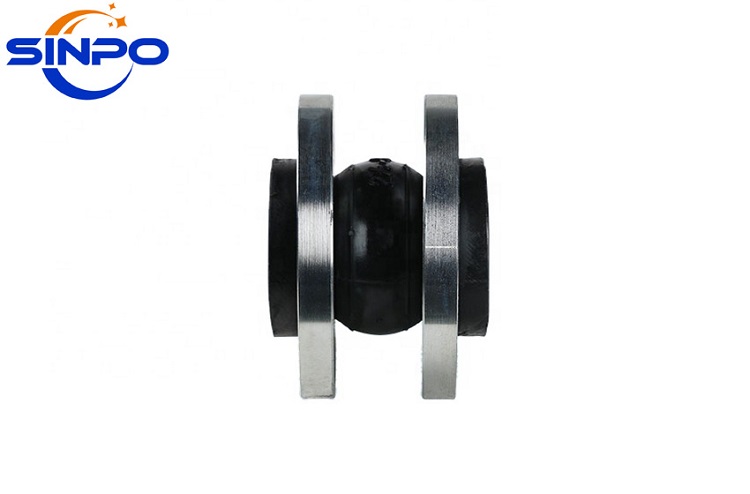

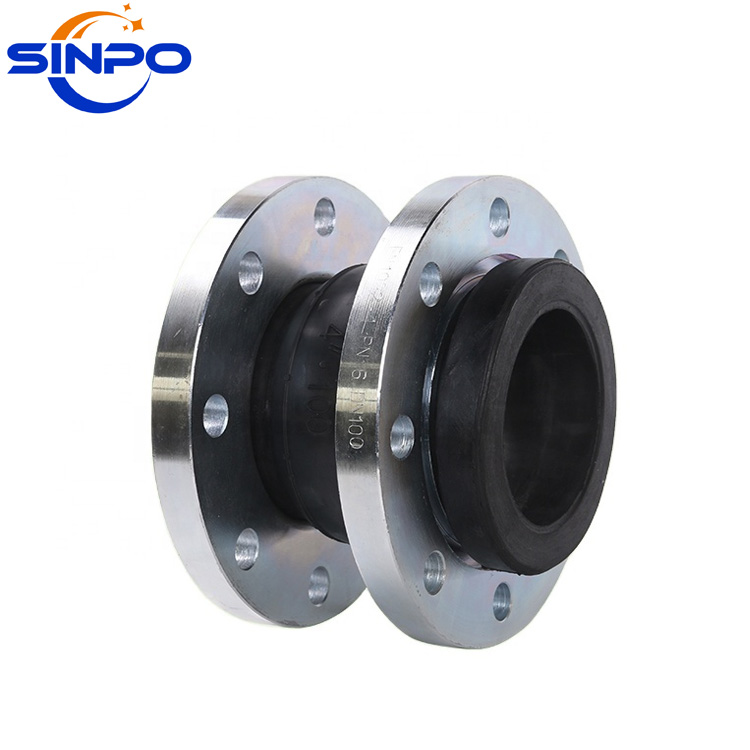

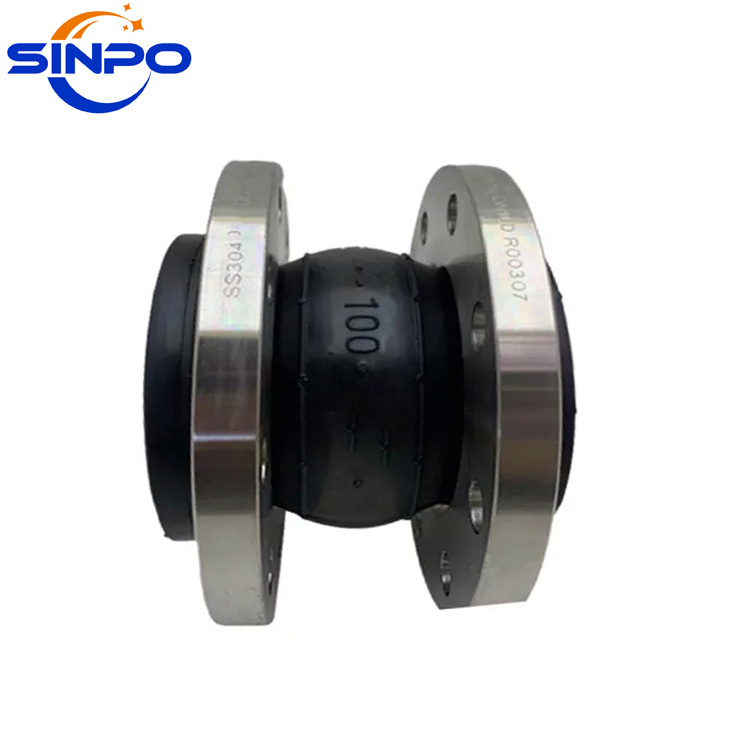

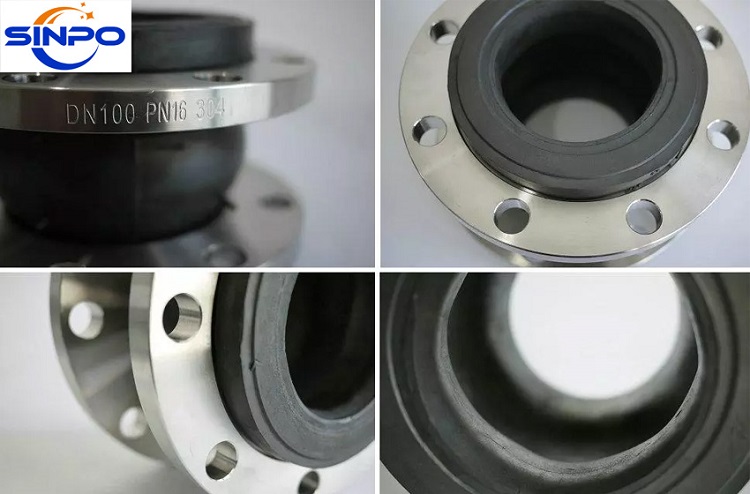

Type: flexible rubber expansion joint Place of Origin: Zhejiang, China Brand Name: SINPO Application: General Power: Manual | Port Size: 1 1/4 to 48 inch Body material: CF8(304) or CF8M(316) Standard: ANSI, JIS, GB, DIN Certificate: CE, RoHS, ISO9001, TUV Suitable Medium: Water, Oil, Steam, Liquid, etc |
Flexible rubber joints are an essential component of modern piping systems. They serve to absorb vibrations and movements caused by fluid transportation and changes in temperature. The importance of flexible rubber joints cannot be overstated as they play a crucial role in ensuring the smooth functioning of pipelines.
One of the biggest advantages of flexible rubber joints is their ability to provide a flexible and leak-proof connection between two pipes. As these joints are made of high-quality rubber materials, they can withstand various pressures and keep the fluids inside the pipe from leaking out. This is particularly important in industries where hazardous chemicals and liquids are transported through pipelines.
Moreover, flexible rubber joints are incredibly durable and require very little maintenance. They can last for several years without needing any repairs or replacements. Furthermore, these joints are cost-effective, and their installation is quick and straightforward.
As industries and infrastructure continue to expand and upgrade, the demand for high-quality flexible rubber joints will undoubtedly increase. They are an essential component to ensure the uninterrupted and efficient functioning of piping systems, which are critical to various industrial processes.
In conclusion, flexible rubber joints play a vital role in modern piping systems. They provide flexible and leak-proof connections, absorb vibrations and movements, and are incredibly durable and cost-effective. Their importance in various industries cannot be overstated, making them an integral part of modern infrastructure.

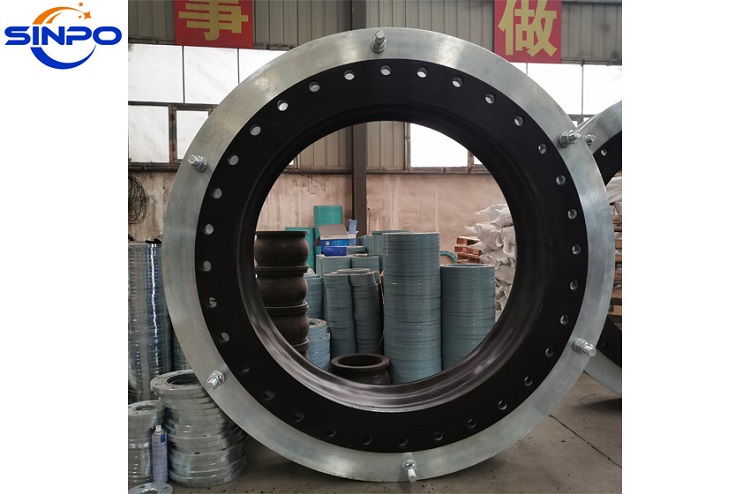

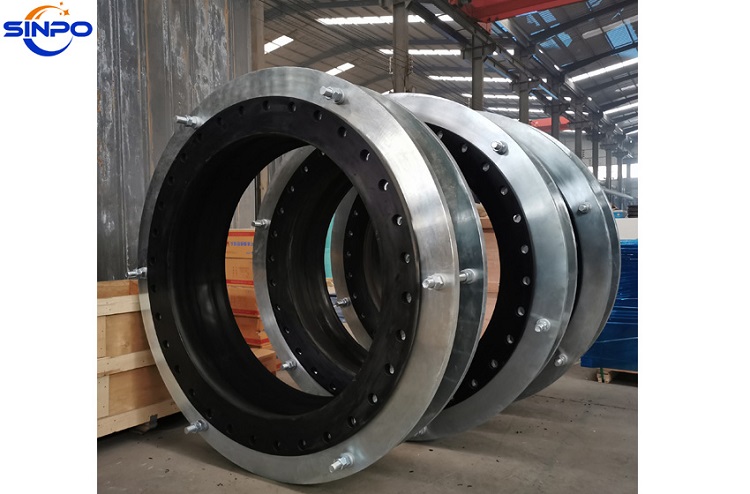

Flexible rubber joint is one of our main products - our company is widely used in water affairs, shipbuilding industry, petrochemical and natural gas industry, electric power industry, valve industry and general pipeline connection engineering, etc. Our company has many engineers and more than 100 workers who can ensure the quality and delivery time. We will do our best to support our customers.

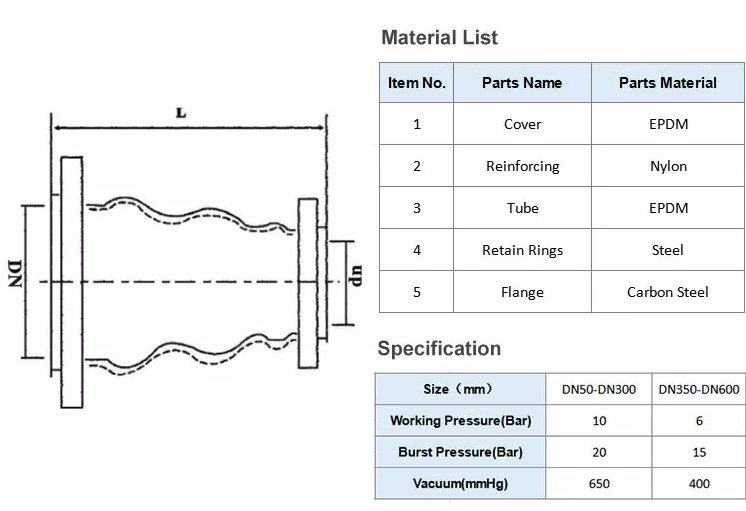

Dimensions (mm)
DN×dn | Neutral Length | Ext. | Comp. | Lateral. | Angular. |
80×40 | 180 | 20 | 30 | 45 | 35" |
80×50 | 180 | 20 | 30 | 45 | 35" |
80×65 | 180 | 20 | 30 | 45 | 35" |
100×50 | 180 | 20 | 30 | 45 | 35" |
100×65 | 180 | 20 | 30 | 45 | 35" |
100×80 | 180 | 20 | 30 | 45 | 35" |
125×65 | 180 | 20 | 30 | 45 | 35" |
150×50 | 190 | 20 | 30 | 45 | 35" |
150×80 | 190 | 20 | 30 | 45 | 35" |
125×80 | 200 | 22 | 30 | 40 | 35" |
125×100 | 200 | 22 | 30 | 40 | 35" |
150×100 | 200 | 22 | 30 | 40 | 35" |
200×100 | 200 | 22 | 30 | 40 | 35" |
200×150 | 200 | 22 | 30 | 40 | 35" |
200×125 | 220 | 25 | 35 | 40 | 35" |
250×500 | 220 | 25 | 35 | 40 | 30" |
300×200 | 220 | 25 | 35 | 40 | 30" |
300×250 | 220 | 25 | 35 | 40 | 30" |
350×200 | 220 | 25 | 35 | 40 | 30" |
350×300 | 220 | 25 | 38 | 35 | 30" |
400×350 | 220 | 25 | 38 | 35 | 30" |
500×400 | 230 | 28 | 38 | 35 | 26" |
600×400 | 240 | 28 | 38 | 35 | 26" |
600×500 | 240 | 28 | 38 | 35 | 26" |
Why Choose Us
1. 24 hours all day service
2. Can be customized according to customer needs
3. Check again before we send the goods
4. Send the goods on time
5. The more you need, the cheaper price.
Product Feature and Applications
1. Small volume, light weight, good flexibility, easy installation and maintenance
2. When installation, can cause the lateral, axial and Angle displacement, not affected by pipeline impassability heart, flange uneven.
3. When working, low noise, strong vibration absorption ability, anti-corrosion, long service life.
Production Process
1. Grasp the quality from the source of raw materials, including rubber mixing, molding, vulcanization and testing.
2. Forbidden to use recycled rubber raw material,Real material can be seen.
3. We track and test every and record every process. We can track every link of the product.

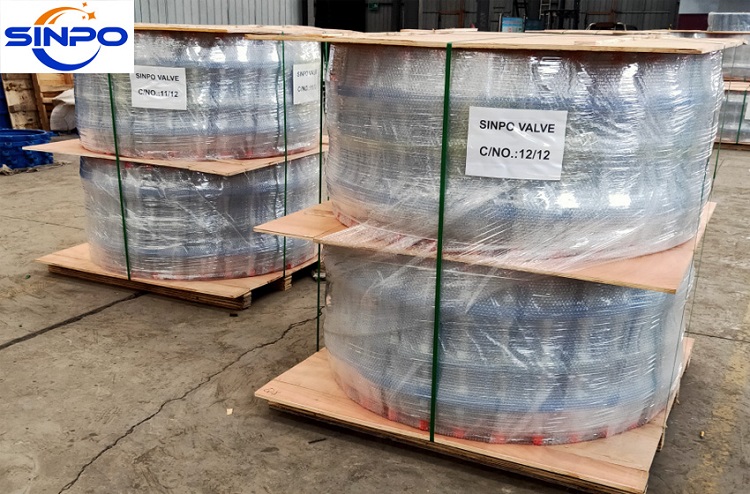

Packaging&Shipping
1. Package: standard export paper carton and wooden or steel pallet;
2. Shipment: by sea, by air or by express.
FAQ
1. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
2. Can you customize the product？
A: Hello, yes, we can customize products for customers.
3. How can you guarantee the quality or any warranty?
A: Check the specification, material and appearance before delivery, and approve the delivery after qualified
B: Support third-party inspection
4. Do you accept small quantity order?
A: Of course we do.
5. Are you the manufacturer？
A: Hello, yes, we have our own production plant.
Pipe bellows compensator is a flexible unit made of natural or synthetic elastomers or fluoroplastics that compensates for expansion, movement due to settling and inaccurate assembly in piping systems.
