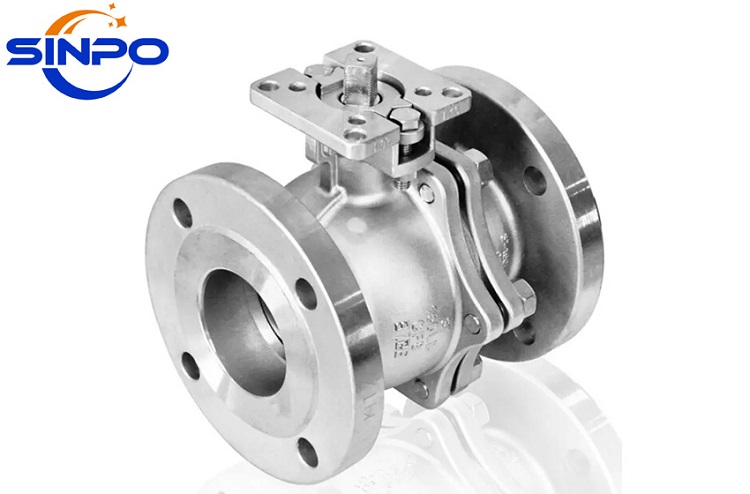

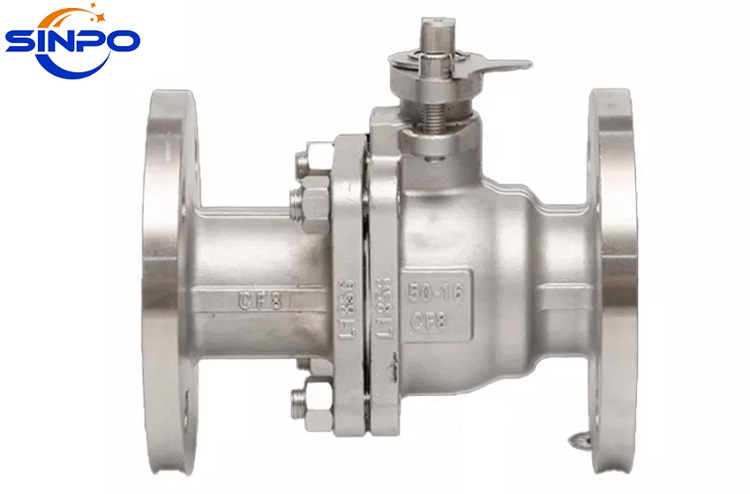

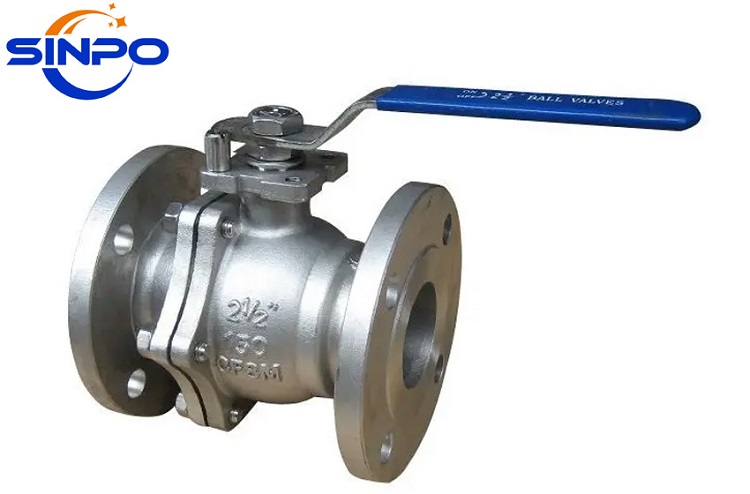

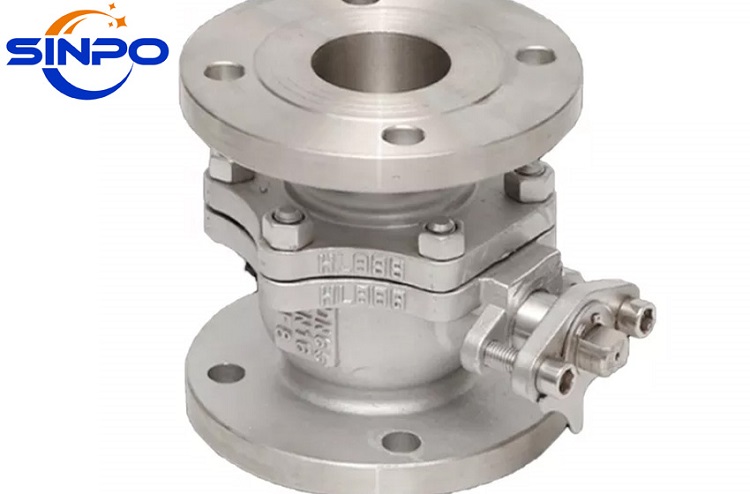

The ANSI Flanged Floating Ball Valve is an essential component in many industries, including oil and gas, power generation, and chemical processing. This valve is designed to provide reliable and efficient control of fluid flow, with its advanced sealing technology and construction materials.
One of the main advantages of this type of valve is its floating ball design, which allows for a tight seal even at high pressures. The ball floats inside the valve body, allowing it to move and adjust to changes in pressure and flow rates. This makes the valve ideal for applications that require precise control, such as in chemical processing or power generation.
In addition, the ANSI Flanged Floating Ball Valve is constructed with high-quality materials that provide excellent resistance to corrosion and wear. This ensures a long service life and reduces the need for frequent maintenance and repairs.
Overall, the ANSI Flanged Floating Ball Valve is a reliable and efficient solution for fluid control in a wide range of applications. Its advanced design and construction make it a favorite choice among engineers and operators looking for a high-quality valve that can perform under demanding conditions.
Connection | Flanged end |
Material | Stainless Steel, WCB |
Pressure | 0 to 64 bar |
Medium Temperature | -10 to 120℃ |
Mediums | Water, oil, air, gas, and other mediums |
Material: WCB, CF8, CF8M, etc

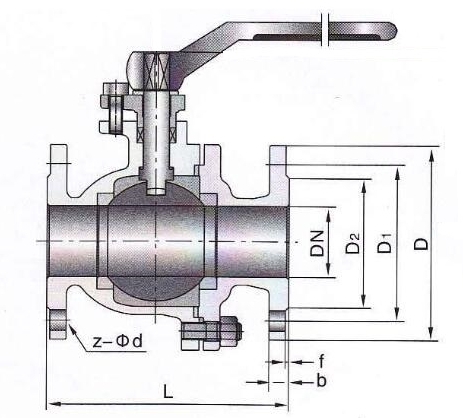

Size | d | L | D | D1 | D2 | f | b | z-d |
1/2" | 15 | 108 | 89 | 60.5 | 35 | 2 | 12 | 4-15 |
3/4" | 20 | 117 | 98 | 70 | 43 | 2 | 12 | 4-15 |
1" | 25 | 127 | 108 | 79.5 | 51 | 2 | 12 | 4-15 |
1 1/4" | 32 | 140 | 117 | 89 | 64 | 2 | 13 | 4-15 |
1 1/2" | 38 | 165 | 127 | 98.5 | 73.2 | 2 | 15 | 4-15 |
2" | 50 | 178 | 152 | 120.7 | 92 | 2 | 16 | 4-19 |
2 1/2" | 65 | 190 | 177.8 | 139.7 | 104.7 | 2 | 18 | 4-19 |
3" | 78 | 203 | 190.5 | 152.4 | 127 | 2 | 19 | 4-19 |
4" | 100 | 229 | 229 | 190.5 | 157 | 2 | 24 | 8-19 |
5" | 125 | 356 | 254 | 216 | 185.7 | 2 | 24 | 8-22 |
6" | 150 | 394 | 279 | 241.3 | 216 | 2 | 26 | 8-22 |
8" | 200 | 457 | 343 | 298.5 | 270 | 2 | 29 | 8-22 |
1. Low fluid resistance
2. Simple structure, small size and light weight.
3. Tight and reliable, good sealing
4. Easy to operate, quick to open and close
5. Easy maintenance, simple ball valve structure
6. Wide range of applications

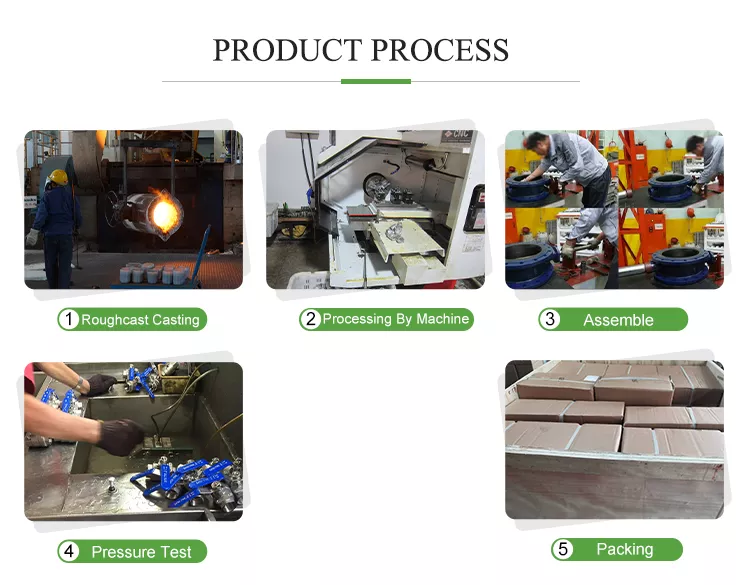

1. Roughcast Casting
2. Processing by machine
3. Assemble
4. Pressure Test
5. Packing
