Type: ss ball valve flange type Place of Origin: Zhejiang, China Brand Name: SINPO Application: General Temperature of Media: High Temperature, -10~120℃ Power: Manual Port Size: 1/2 to 14 inch | Structure: Ball Valve Sealing: PTFE Body material: CF8(304) or CF8M(316) Stem: SS 304 or SS 316 Standard: ANSI, JIS, GB, DIN Certificate: CE, RoHS, ISO9001, TUV Suitable Medium: Water, Oil, Steam, Liquid, etc |
Supply Ability
10000 Piece/Pieces per Month
Packaging Details
Each ss ball valve is packed into a plastic bag, then packed into inner box and carton, finally packed into plywood cases or pallets.
Port
Ningbo, Shanghai, etc
Lead Time
Most of the products are in stock, and it takes 15-25 days for products that are not in stock.

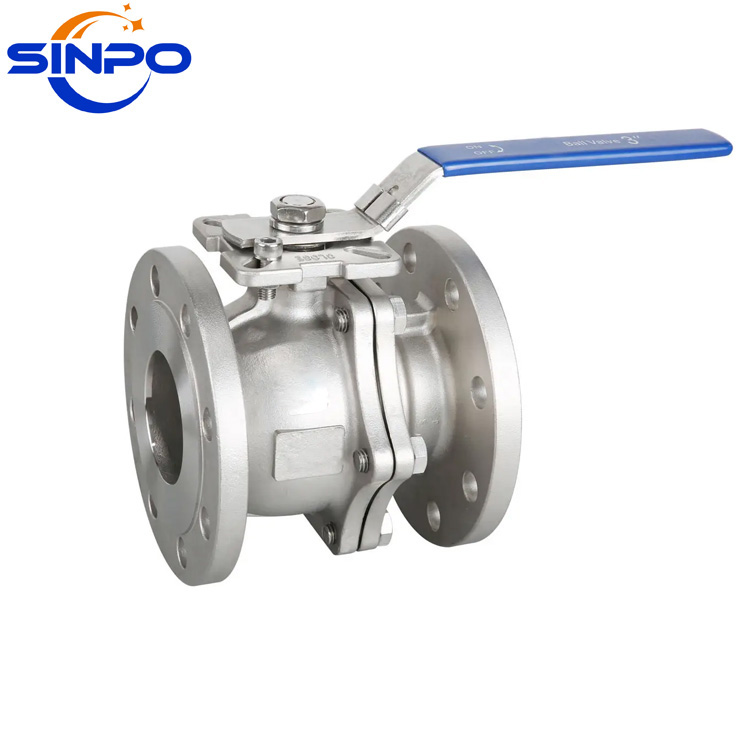

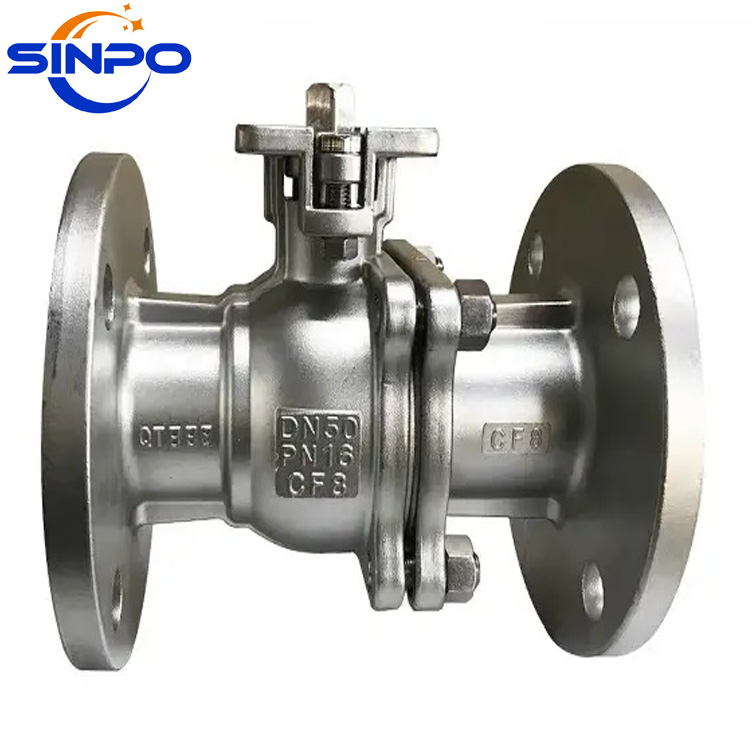

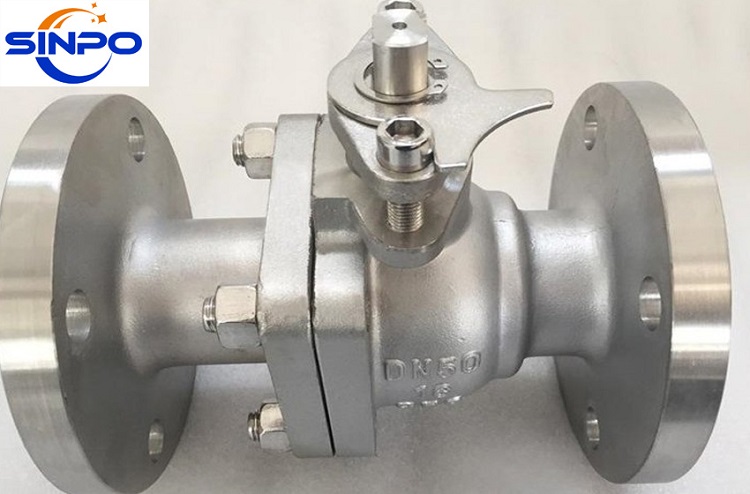

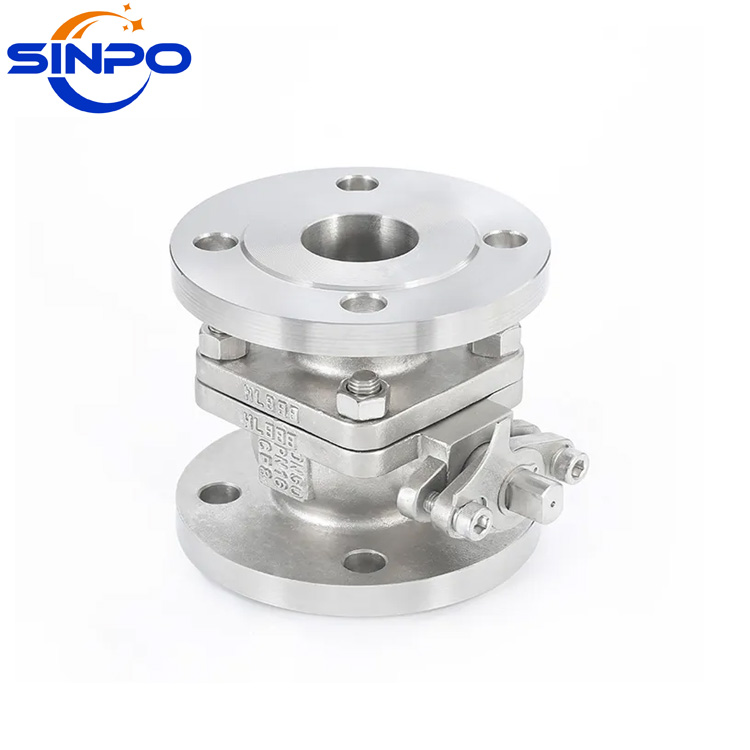

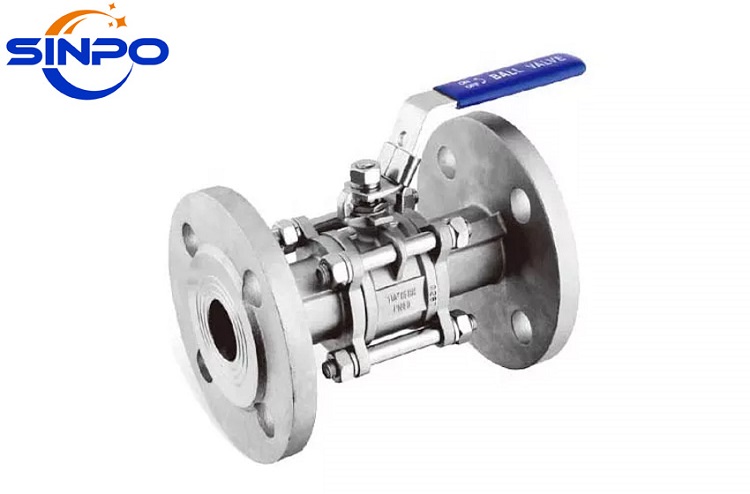

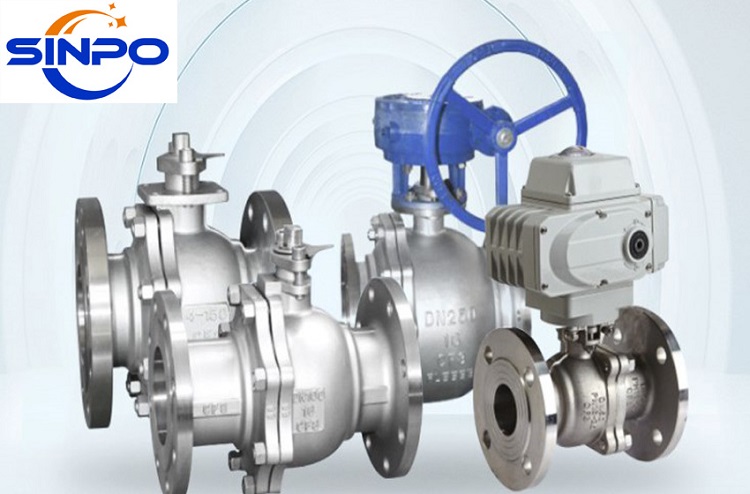

Sinpo insists on producing high-quality valves for 20 years. We have our own factory and are your reliable supplier. We make every product carefully, and the DIN Flanged Floating Ball Valve is one of our carefully crafted products.
Connection | Flanged end |
Material | Stainless Steel, WCB |
Pressure | 0 to 64 bar |
Medium Temperature | -10 to 120℃ |
Mediums | Water, oil, air, gas, and other mediums |
Material: WCB, CF8, CF8M, etc

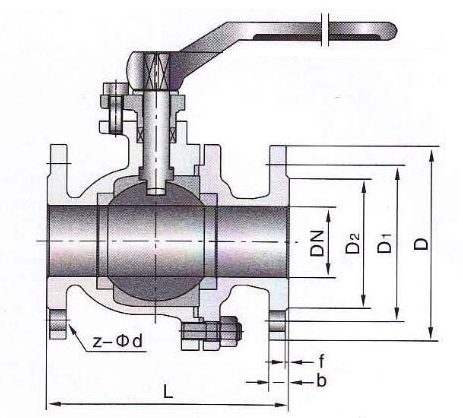

Size | d | L | D | D1 | D2 | f | b | z-d |
1/2" | 15 | 130 | 95 | 65 | 46 | 2 | 14 | 4-14 |
3/4" | 20 | 140 | 100 | 75 | 56 | 2 | 16 | 4-14 |
1" | 25 | 150 | 115 | 85 | 65 | 2 | 16 | 4-14 |
1 1/4" | 32 | 165 | 135 | 100 | 76 | 2 | 18 | 4-18 |
1 1/2" | 38 | 180 | 145 | 110 | 84 | 2 | 18 | 4-18 |
2" | 50 | 200 | 160 | 125 | 99 | 2 | 20 | 4-18 |
2 1/2" | 65 | 220 | 180 | 145 | 118 | 2 | 20 | 4-18 |
3" | 78 | 250 | 195 | 160 | 132 | 2 | 20 | 8-18 |
4" | 100 | 280 | 215 | 180 | 156 | 2 | 22 | 8-18 |
5" | 125 | 320 | 250 | 210 | 184 | 2 | 22 | 8-18 |
6" | 150 | 360 | 285 | 240 | 211 | 2 | 24 | 8-22 |
8" | 200 | 400 | 340 | 295 | 266 | 2 | 24 | 12-22 |
10" | 250 | 533 | 405 | 355 | 319 | 2 | 26 | 12-26 |
12" | 300 | 610 | 460 | 410 | 370 | 2 | 28 | 12-26 |
14" | 350 | 686 | 520 | 470 | 435 | 2 | 34 | 16-25 |
1. We have experienced technical people, labor workers,effective team.
2. Best prices with good quality.
3. OEM service offered.
The main features of this product is its compact structure, easy operation and maintenance, suitable for general working media such as water, solvent, acid and natural gas, and also suitable for media with harsh working conditions, such as oxygen, hydrogen peroxide, methane and Ethylene etc.
Joy Valve is a high-tech integrated enterprise that specialized in valve R&D, manufacturing, sales. Our company is located in valve township- Yuhuan, Taizhou, Zhejiang, with an area of 10000 square meters. Our main products are floating valve, ball valve, ISO tank parts, gate valve, globe valve, check valve and pipe fittings, what's more, we can manufacture customized valves and fittings according to customer's sample and request!

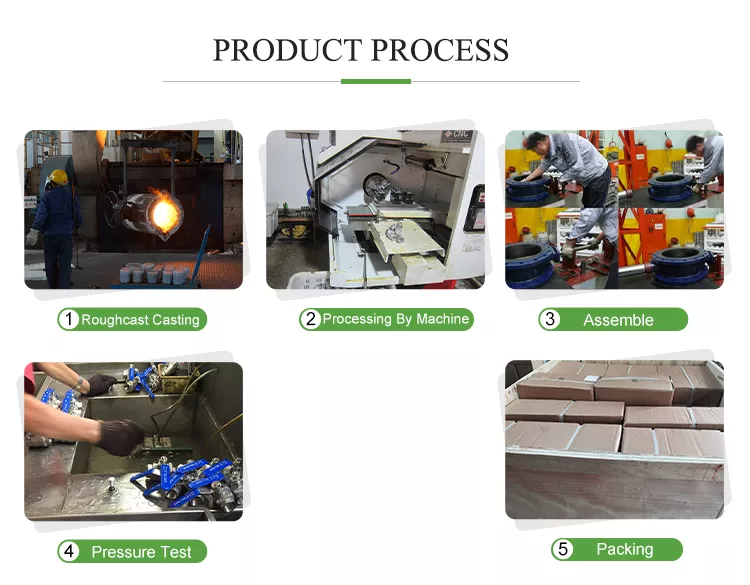

Our product production consists of five steps, namely roughcast casting,processing by machine, assemble, pressure test and packing.
1: Are you a factory?
A: We are a factory settled up more than 20 years and export more than 20 years.
2: Coud you send me a quoattion?
A: Sure, before the exactly quotation we need information followed:
1). Product material grand
2). Quantity of each sizes.
3). The size range of your product.
4). Your requriement, such as deal with the surface or anyother requriement
5). Best, Please show us your product picture.
3: How about the after service?
A: Free of charge for one year warranty,if have any problem,
when our technician check, after confirm it ,we will change it at once.
4: What about the shipping package?
A: Standard packing or as customer requirements.
5. Q: How do you control your quality?
A: a). We purchased a lot of test equipments from Germany.
b). Our own QC system and professional team ensure the quality.
Ball valves are used in piping systems that require the flow of materials to be quickly stopped or started. Cast carbon steel is an ideal solution for all industries, across all valve types. Suitable for both commodity, and critical applications.
