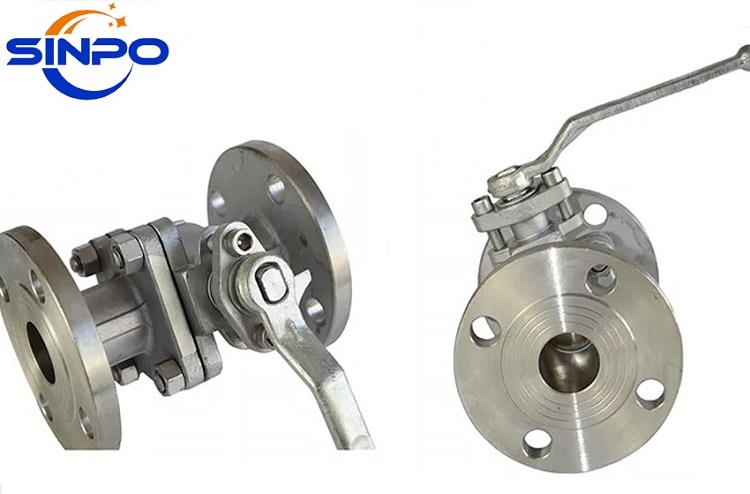

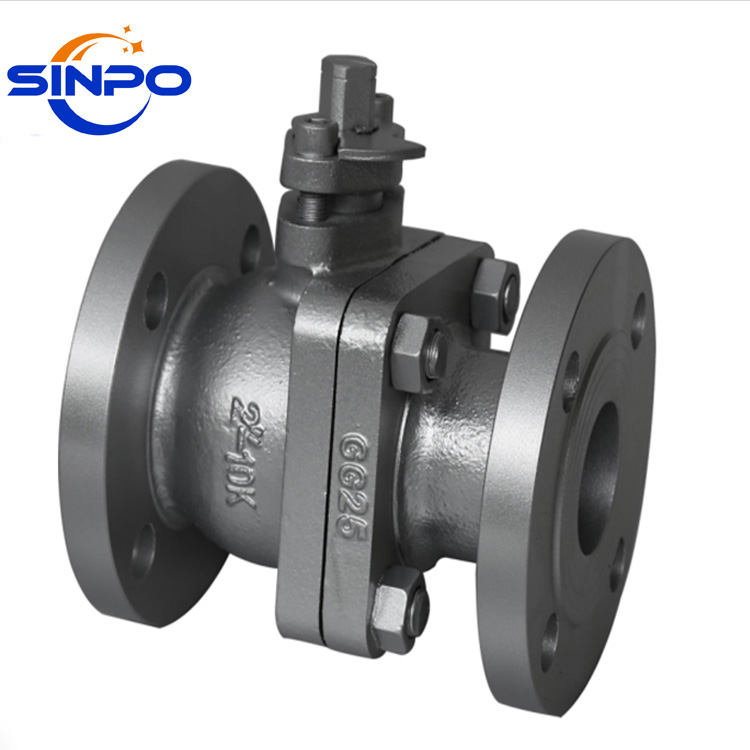

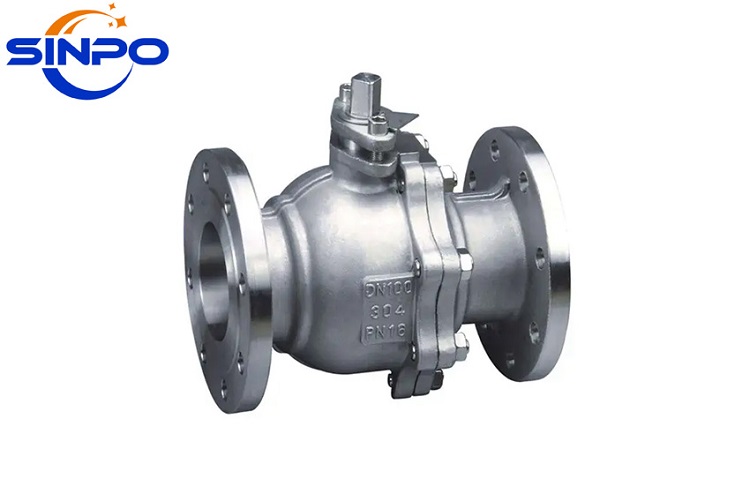

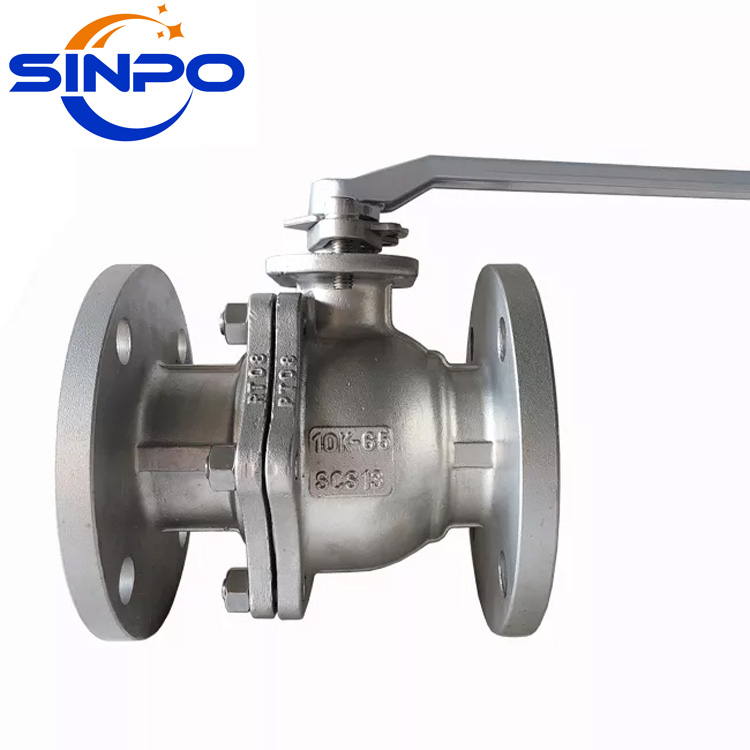

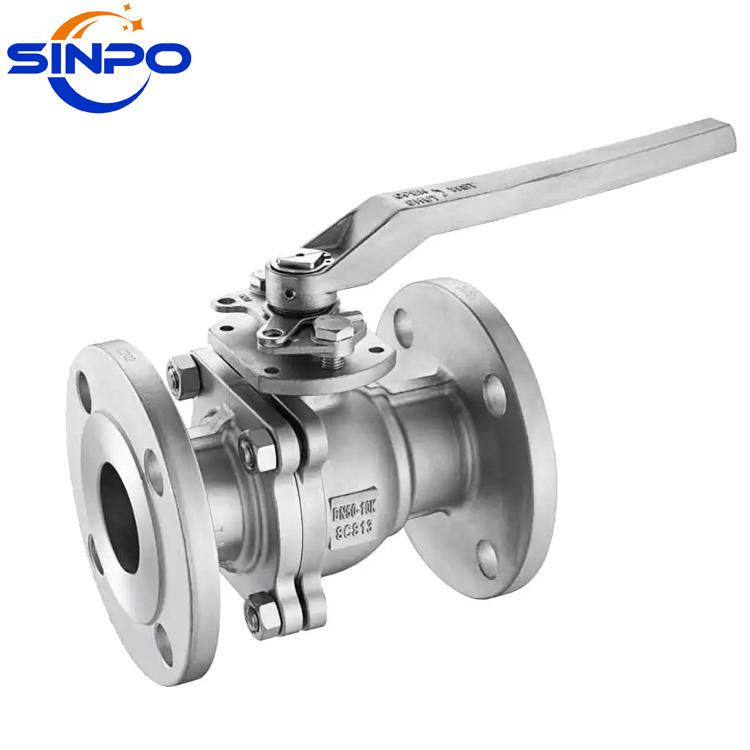

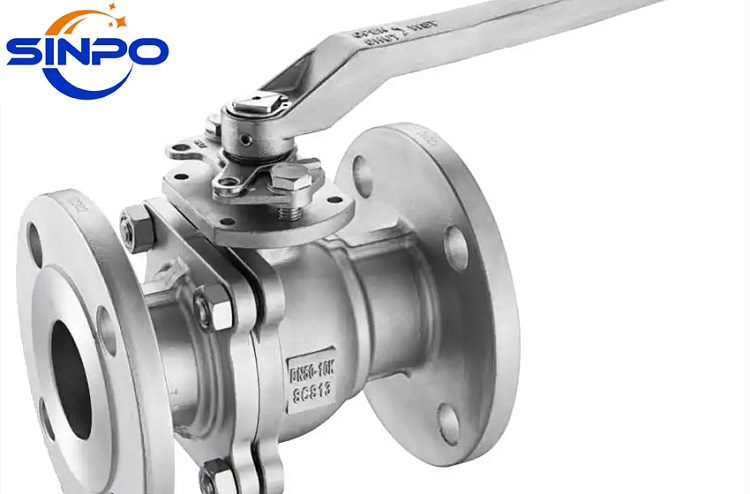

JIS Flanged Floating Ball Valve

Introduction

JIS Flanged Floating Ball Valve is an actuator that uses the pressure and flow characteristics of the medium itself for automatic control. Its ball is floating, and under the action of medium pressure, the ball can produce a certain displacement and press tightly on the sealing surface of the outlet end to ensure the seal of the outlet end. Compared with the fixed ball valve, the floating ball valve is small in size, light in weight, simple in structure, and good in sealing performance, but the load of the working medium on the ball is completely transmitted to the outlet sealing ring, so it is necessary to consider whether the material of the sealing ring can withstand the medium of the ball workload. Generally speaking, this product is suitable for medium and low-pressure conveying conditions. It is applicable whether it is in the fields of chemical industry, petroleum, natural gas, metallurgy, etc., or industries such as environmental protection, electric power, and national defense.

Advantages

The sealing performance of the JIS Flanged Floating Ball Valve is very excellent, which can ensure the reliability of the valve, and there will be no problems such as leakage. Excellent guiding performance makes it possible to reduce the force required for operation, making the valve more convenient to use. In addition, the thickened stainless steel valve body has good corrosion resistance, can adapt to various liquid and gas media (acid, alkali, oil, gas, steam, water, and other media), and also has good high-temperature resistance.

The structure design of the JIS Flanged Floating Ball Valve is also very reasonable, which can better ensure the stability and safety of operation. The double-end groove design can ensure the stability of the valve stems during operation. The casing made of precision machining and casting can effectively resist various torques and pressures, and has good safety performances such as fire prevention, explosion protection, and antistatic, making the service life of the valve longer. At the same time, the smaller sphere can also solve the clogging problem that is easy to occur during the flow of media with smaller particles in the pipeline.

Quick Details

Supply Ability

10000 Piece/Pieces per Month

Packaging Details

Each ss ball valve is packed into a plastic bag, then packed into inner box and carton, finally packed into plywood cases or pallets.

Port: Ningbo, Shanghai, etc

Lead Time: Most of the products are in stock, and it takes 15-25 days for products that are not in stock.

Material: WCB, CF8, CF8M, etc

Feature

1. Low fluid resistance

2. Simple structure, small size and light weight.

3. Tight and reliable, good sealing

4. Easy to operate, quick to open and close

5. Easy maintenance, simple ball valve structure

6. Wide range of applications

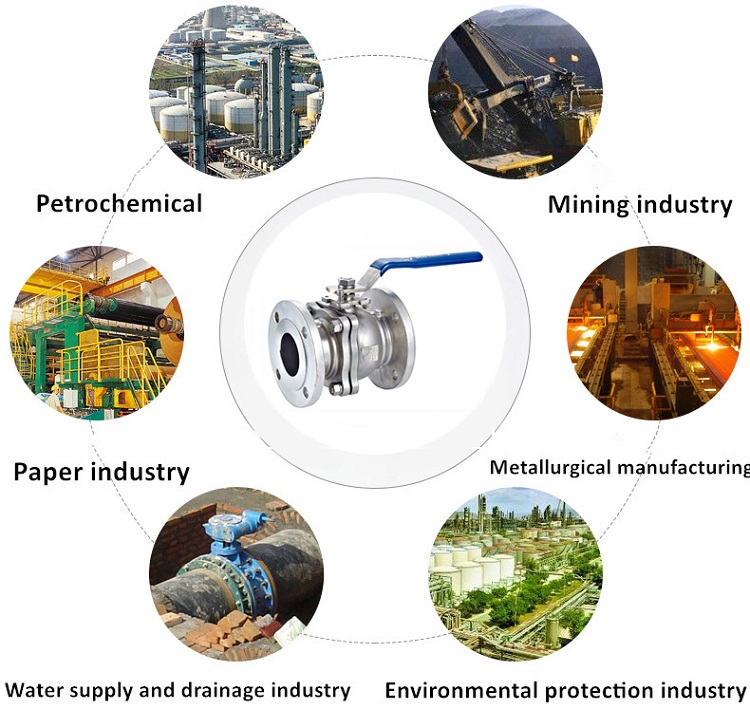

Application

Company Profile

Joy Valve's main products are floating valve, ball valve, ISO tank parts, gate valve, globe valve, check valve and pipe fittings, what's more, we can manufacture customized valves and fittings according to customer's sample and request!

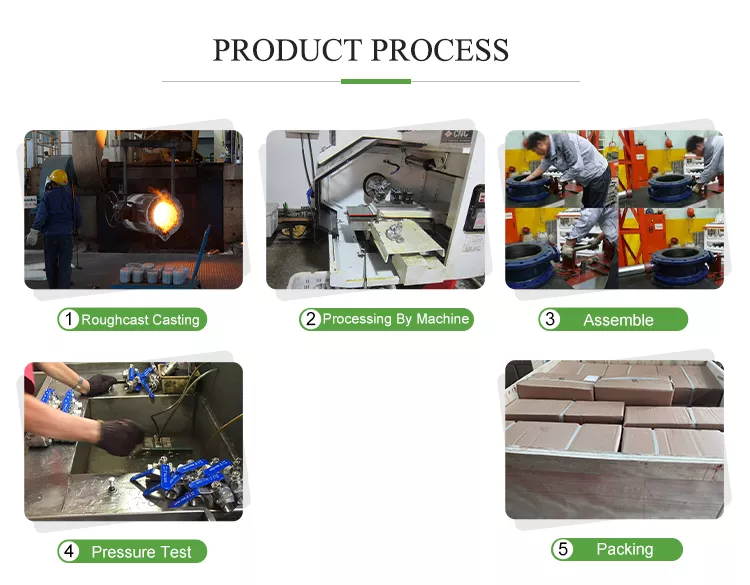

Production Process

Our products will be processed after initial production, and will only be shipped after strict inspection.

FAQ

1. Can I request to advance the shipment?

A: It should be depends on whether there is sufficient inventory in our warehouse.

2. Can you produce the products according to my own drawings?

A: Yes, we can produce the products according to your drawings that will be most satisfy you.
