Type: ss quick connect fittings Place of Origin: Zhejiang, China Brand Name: SINPO Application: General Power: Manual | Port Size: 1/2 to 6 inch Body material: CF8(304) or CF8M(316) Standard: ANSI, JIS, GB, DIN Certificate: CE, RoHS, ISO9001, TUV Suitable Medium: Water, Oil, Steam, Liquid, etc |
Supply Ability
10000 Piece/Pieces per Month
Packaging Details
Each product is packed into a plastic bag, then packed into inner box and carton, finally packed into plywood cases or pallets.
Port
Ningbo, Shanghai, etc
Lead Time
Most of the products are in stock, and it takes 15-25 days for products that are not in stock.

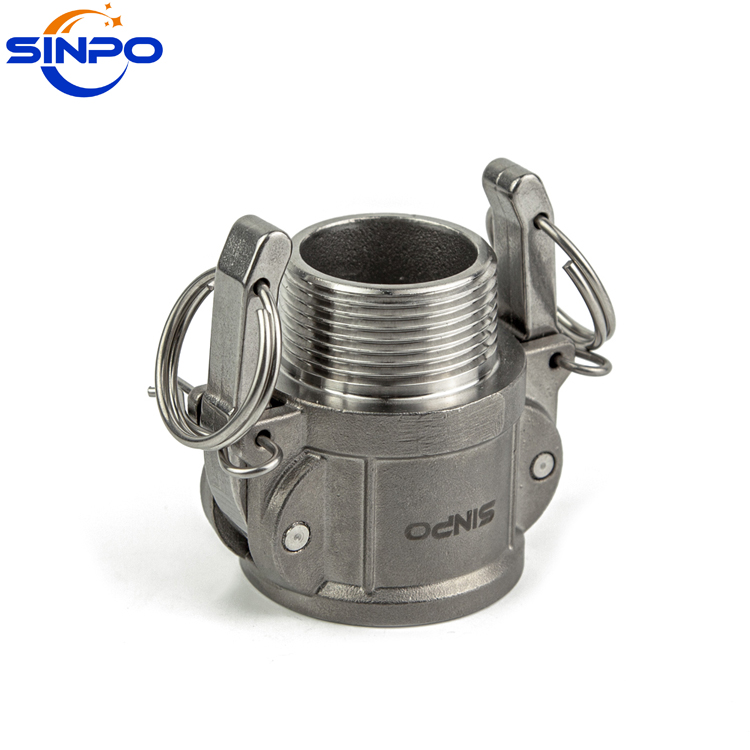

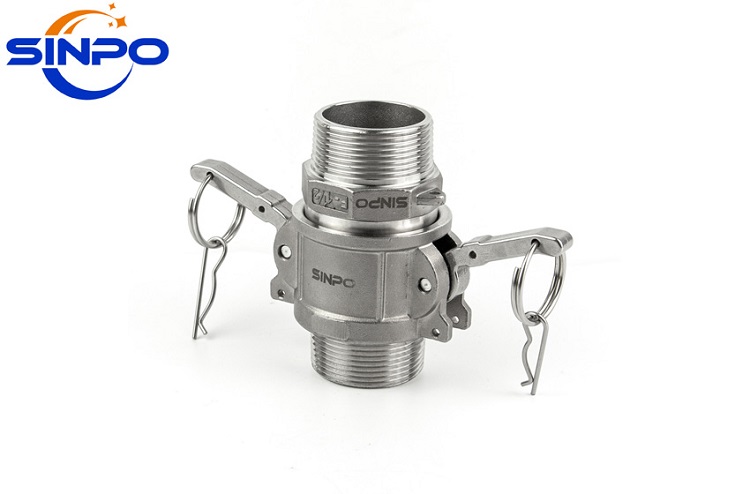

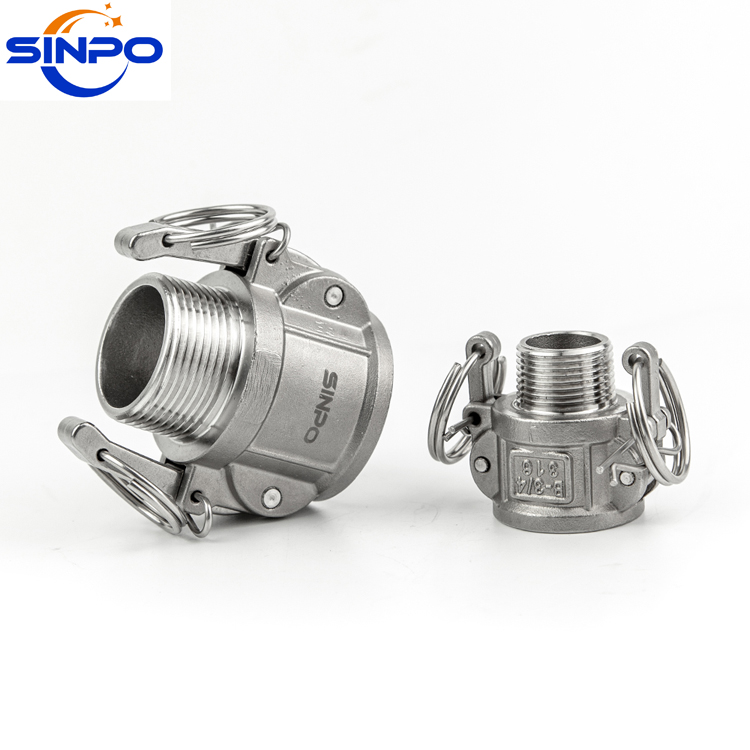

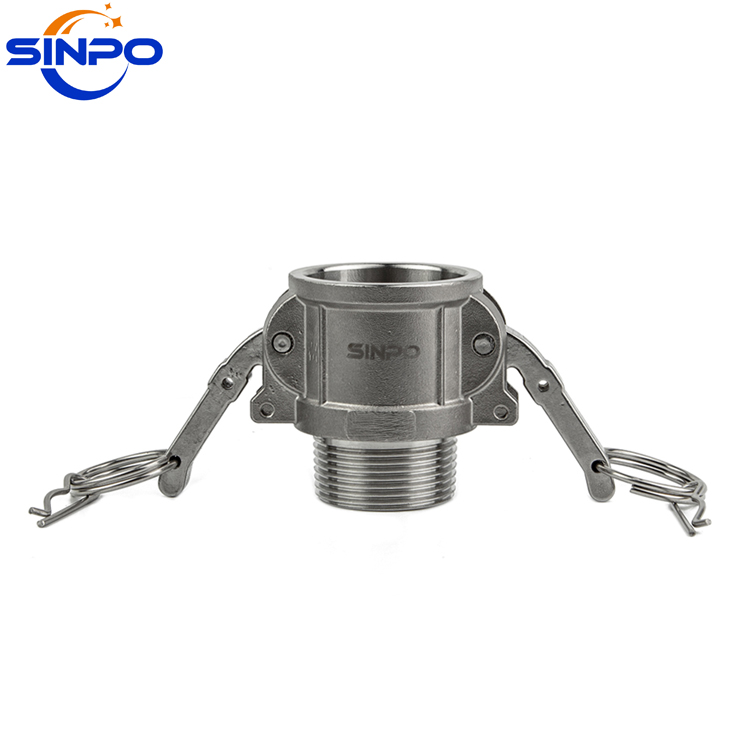

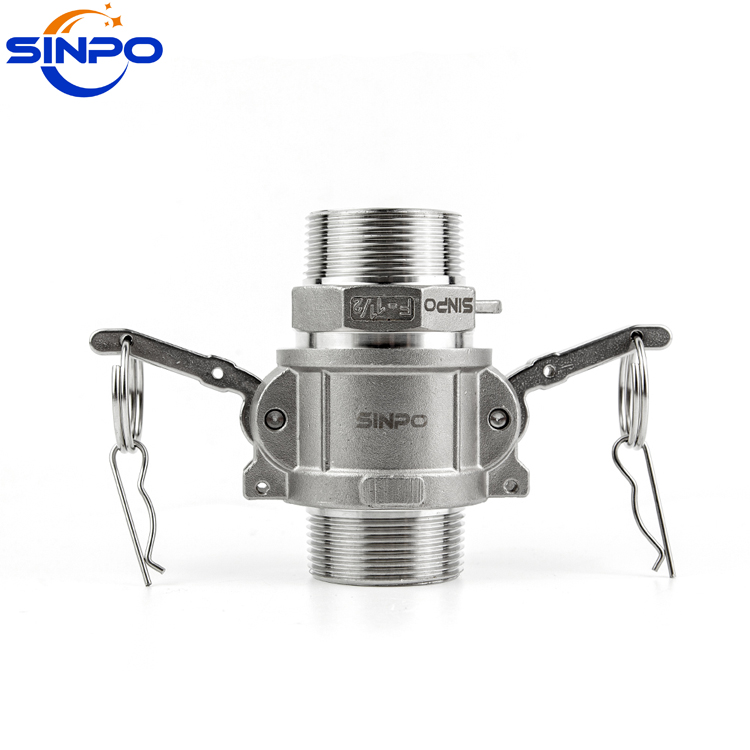

The main function of SS Camlock Coupling Type B is to control fluid flow and prevent fluid leakage through interconnection and separation. In the process of high-speed transmission, it has the function of buffering and shock absorption. Better service life enables it to guarantee working efficiency. Because it can adapt to various working conditions (can be applied to liquid, powder, and other media), it is often used in the fields of water, gas, petroleum, chemical, paper, and metallurgy. The simple structure makes it very easy to use, you can quickly connect or disconnect it, so as to achieve precise industrial fluid control and increase productivity.
Features
1. Anti-leakage
SS Camlock Coupling Type B is made of high-quality stainless steel, which has excellent sealing performance and an anti-leakage effect. It not only has the advantages of corrosion resistance, pressure resistance, high-temperature resistance, wear resistance, etc. but also can complete the precise connection through tapered pipe thread, so as to ensure the stable transmission of fluid in the pipeline.
2. Easy to install
The product is small in size and very easy to install. The screw thread and straight line design make it have ability of quick connection, to a certain extent, it can be installed quickly and reduce the waste of time. You can also choose an external taper pipe thread, cannula connection, flange connection, and so on.
3. Anti-corrosion
Stainless steel extends the life of the SS Camlock Coupling Type B, making it corrosion and chemical resistant. This performance makes it suitable for water, oil, steam, and other media. Smooth inner walls also help improve transfer efficiency.

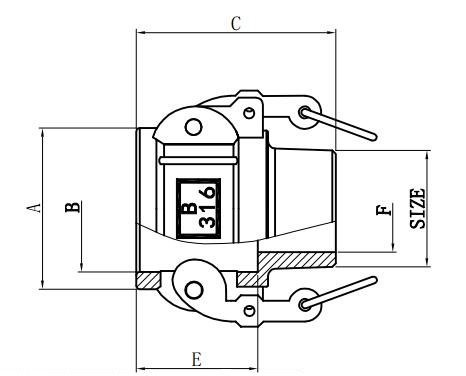

Size | A | B | C | E | F |
1/2" | 41 | 33 | 48 | 27.5 | 22 |
3/4" | 41 | 33 | 48 | 27.5 | 22 |
1" | 46 | 38 | 56 | 34.5 | 25 |
1 1/4" | 56 | 46.5 | 65 | 41 | 31 |
1 1/2" | 63 | 54.5 | 68 | 42 | 38 |
2" | 74 | 64 | 76 | 44.5 | 49 |
2 1/2" | 87 | 76 | 84 | 50 | 60 |
3" | 105 | 92 | 89 | 53 | 76 |
4" | 134 | 120 | 94 | 53 | 104 |
5" | 164 | 146.5 | 97 | 50 | 128 |
6" | 195 | 176.5 | 103 | 56 | 150 |
1. OEM Manufacturing welcome: Product, Package...
2. Sample order we will reply you for your inquiry in 24 hours.
3. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Application
Our products are widely used in industry, agriculture, oil chemistry, household and many other fields.
Joy Valve is a high-tech integrated enterprise that specialized in valve R&D, manufacturing, sales. Our company is located in valve township- Yuhuan, Taizhou, Zhejiang, with an area of 10000 square meters. Our main products are floating valve, ball valve, ISO tank parts, gate valve, globe valve, check valve and pipe fittings, what's more, we can manufacture customized valves and fittings according to customer's sample and request!

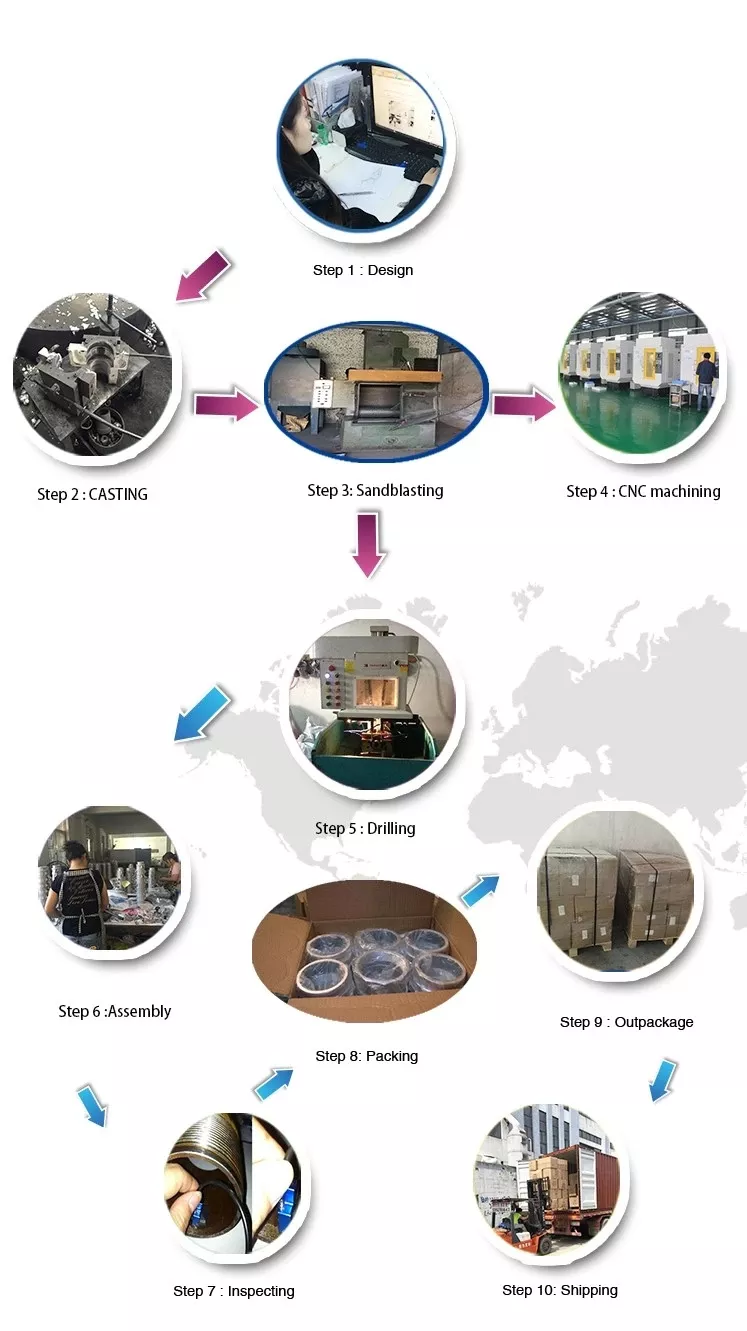

Our staff are all skilled operators, each process is strictly controlled and we have got through the third party inspection. We adopt the international advanced technology, and we have introduced dozens of advanced CNC lathes to ensure the processing technology of products.
1. Package: standard export paper carton and wooden or steel pallet;
2. Shipment: by sea, by air or by express.
1. What is your minimum order requirement?
A: We have indicated the MOQ for each item in the price list. But we also can accept sample.
2. How can you guarantee the quality of products?
A: First of all, We have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
