Type:ss quick couplings Place of Origin:Zhejiang, China Brand Name:SINPO Application:General Power:Manual | Port Size:1/2 to 6 inch Body material:CF8(304) or CF8M(316) Standard:ANSI, JIS, GB, DIN Certificate:CE, RoHS, ISO9001, TUV Suitable Medium:Water, Oil, Steam, Liquid, etc |
Supply Ability
10000 Piece/Pieces per Month
Packaging Details
Each product is packed into a plastic bag, then packed into inner box and carton, finally packed into plywood cases or pallets.
Port
Ningbo, Shanghai, etc
Lead Time
Most of the products are in stock, and it takes 15-25 days for products that are not in stock.

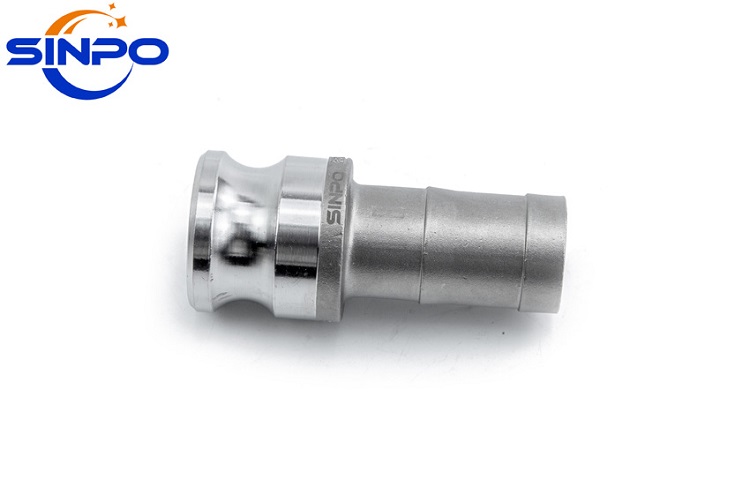

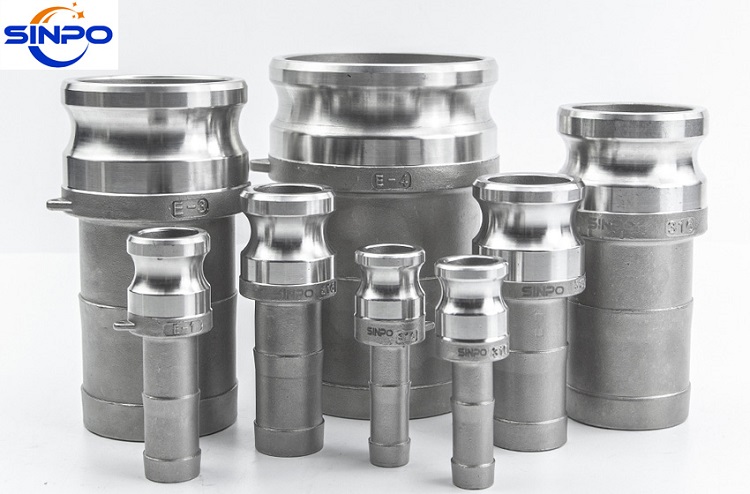

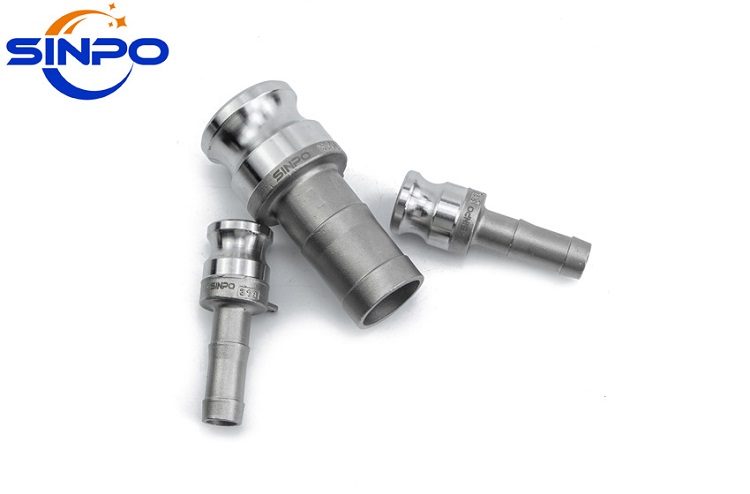

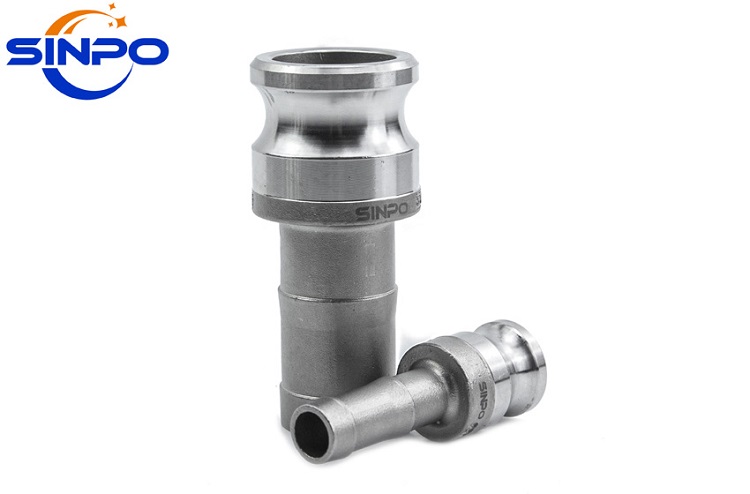

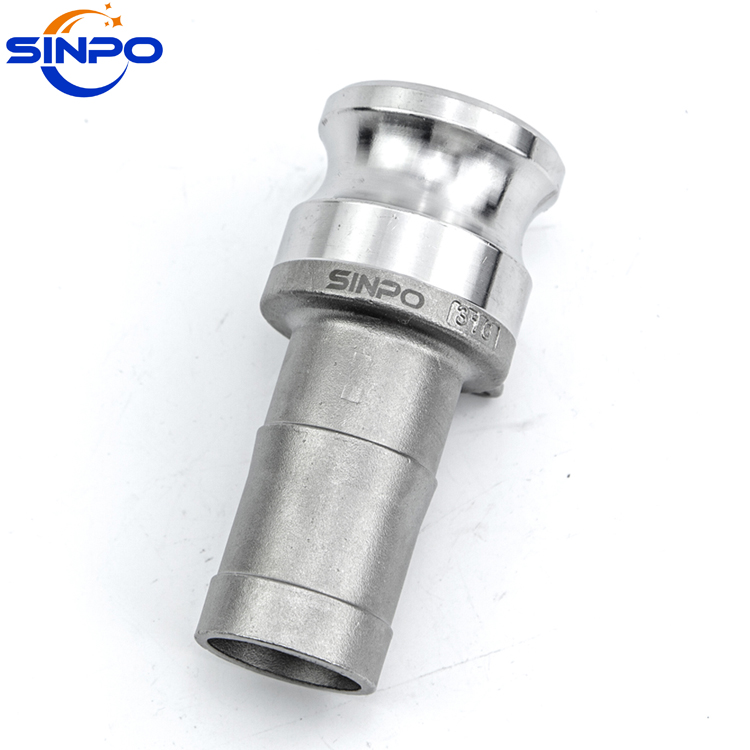

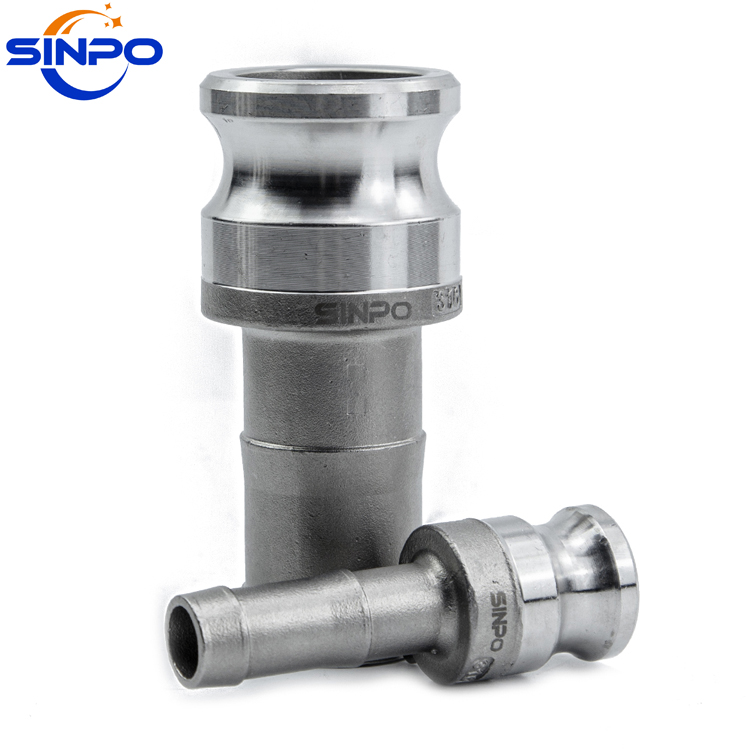

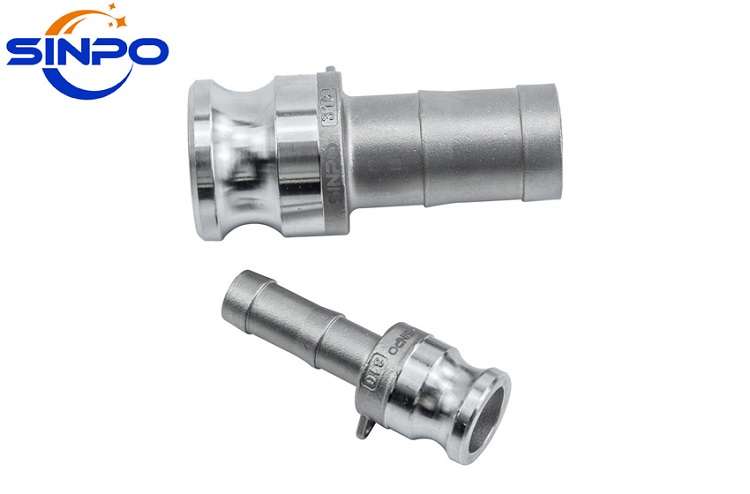

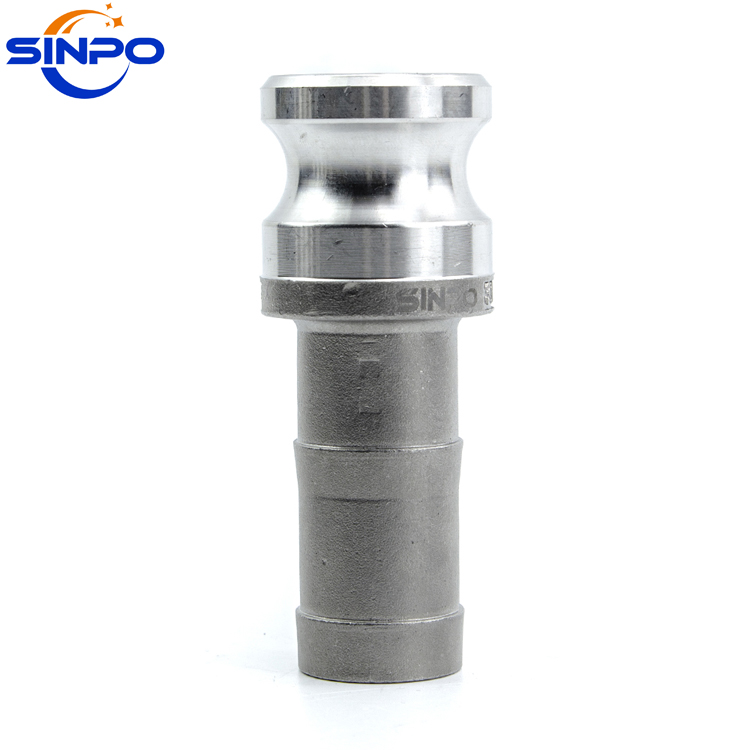

SS camlock coupling type E is one of our main products - our company is widely used in water affairs, shipbuilding industry, petrochemical and natural gas industry, electric power industry, valve industry and general pipeline connection engineering, etc. Our company has many engineers and more than 100 workers who can ensure the quality and delivery time. We will do our best to support our customers.

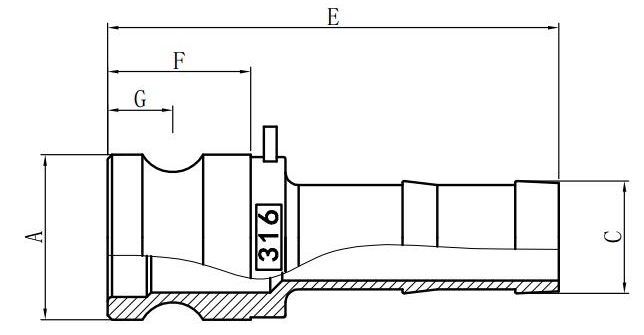

Size | A | C | E | F | G |
1/2" | 32 | 20 | 94 | 26.5 | 11.8 |
3/4" | 32 | 20 | 94 | 26.5 | 11.8 |
1" | 36.3 | 25.8 | 103 | 33 | 14 |
1 1/4" | 45 | 33.2 | 115 | 39 | 17.5 |
1 1/2" | 54 | 38.8 | 118 | 41 | 17.5 |
2" | 63 | 52.8 | 131 | 43 | 21.5 |
2 1/2" | 75 | 65.6 | 148 | 46 | 21.5 |
3" | 91 | 78.6 | 162 | 48 | 22.7 |
4" | 119 | 105 | 172 | 50 | 22.7 |
5" | 145.5 | 129 | 196 | 53 | 23.8 |
6" | 176 | 154 | 204 | 57.3 | 35.7 |
1. We are professional manufactures of producing valves for more than 20 years
2. We have factory, we will provide the best price.
3. Our products are of high quality and each product is thorugh strict inspection.
4. We make sure delivery is on time and won't delay the delivery.

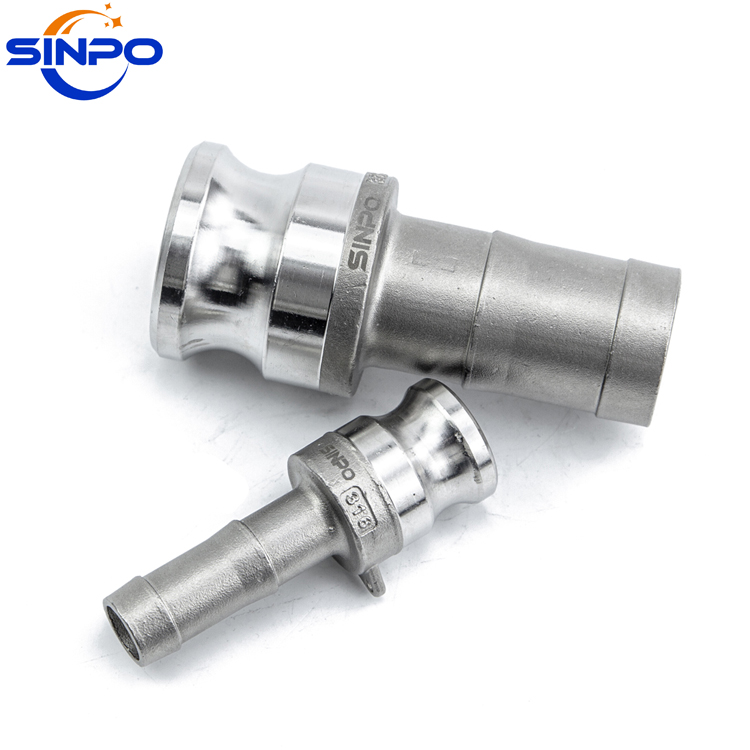

Stainless steel camlock connector is widely used in oil, gas and general corrosive medium pipeline system to realize quick connection. It is made of various high-quality materials with beautiful appearance and strong corrosion resistance. Its structure uses eccentric principle to realize brake locking, which is safe, reliable and easy to operate.

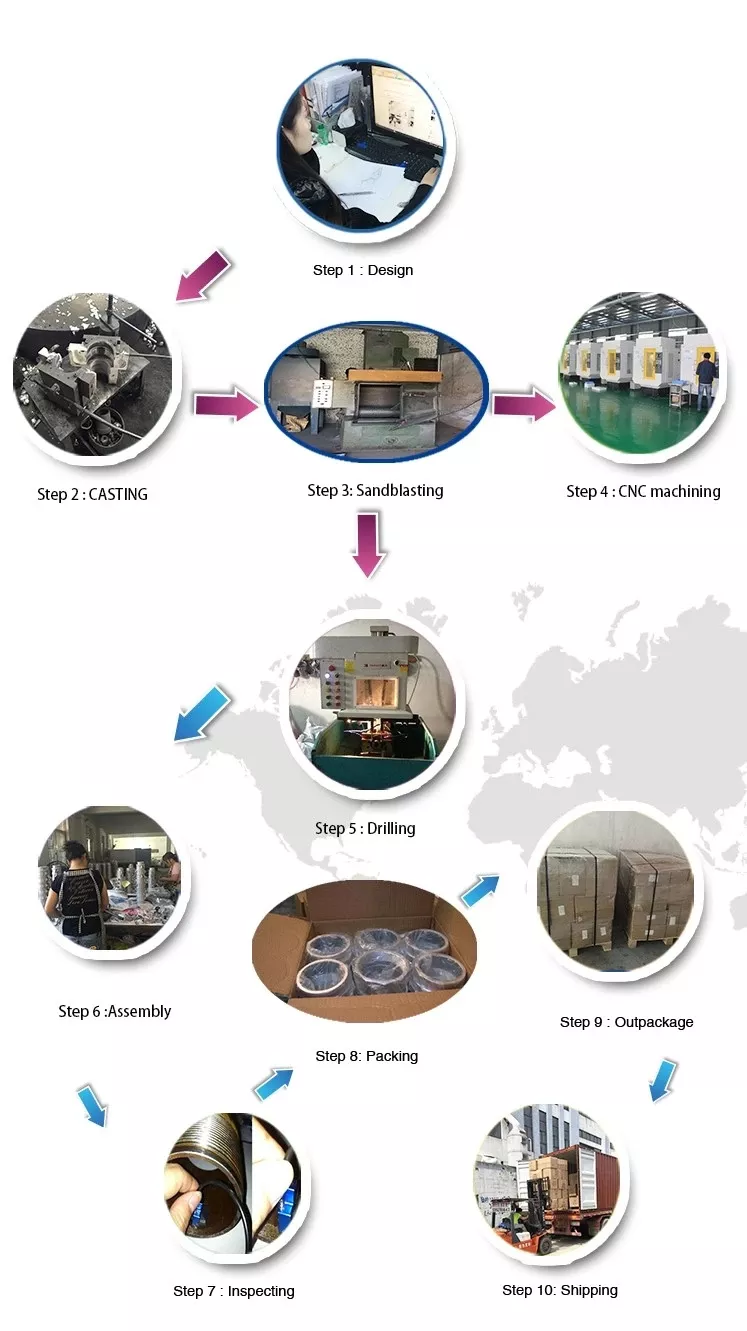

The production process includes: transportation and preservation of raw materials or semi-finished products, preparation for production, blank manufacturing, machining, welding, heat treatment, assembly, testing, painting and packaging, etc.

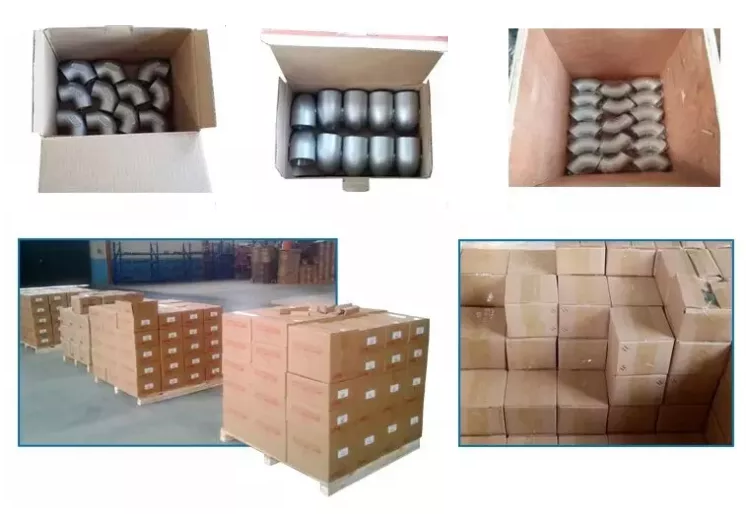

1. Package: standard export paper carton and wooden or steel pallet;
2. Shipment: by sea, by air or by express.
1. Would you have a discount if l have a large order?
A: Yes we could offer different discount according to your order quantity.
2. How will you make the shipment?
A: By sea shipment/Air/Express service.
3. Do you have engineers in your company?
A: Yes, we have engineers in each of our factories, and also there are 5 engineers in our office, so we not only could supply professional solutions to you, also we could supply installation guidance and excellent after-service.
4. Do you have any international certificate?
A: Yes, we have API, ISO and etc.
5. How long is the guarantee?
A: We promise guarantee as one year for non-human damage factor.100% inspection before packing and shipping. Goods will be shipped out only after checking and testing department inspect one by one.
The stainless steel camlock fitting is the most robust and durable of camlock fittings on the market. We have stainless steel cam and groove couplings available in stock. Now in stock are hose tails manufactured from stainless steel in a range of sizes, all available with great discounts. Order online today!
