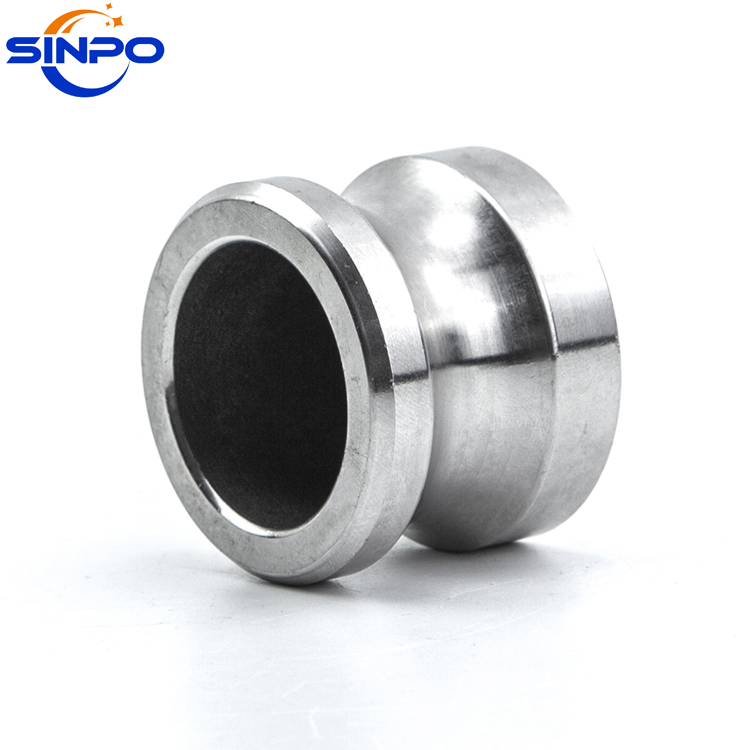

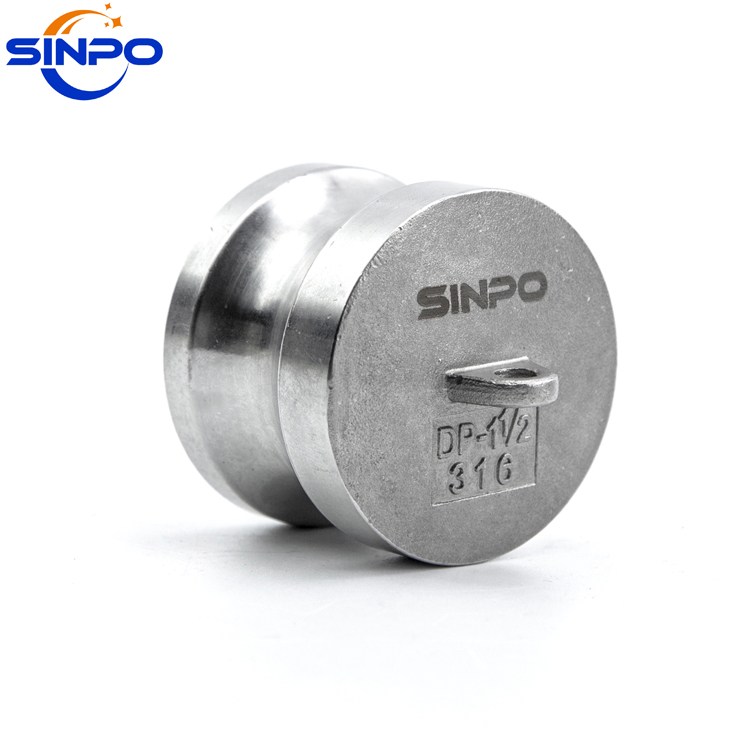

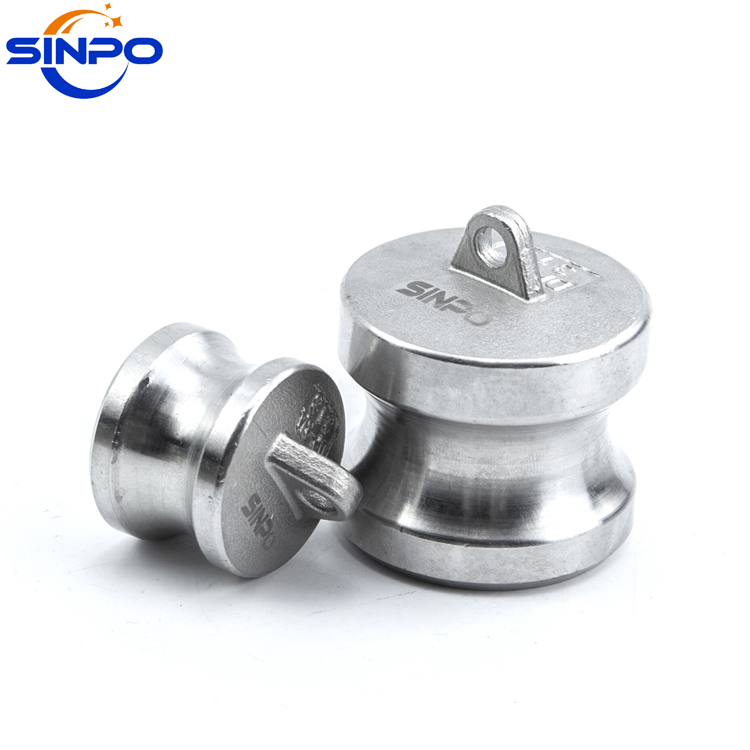

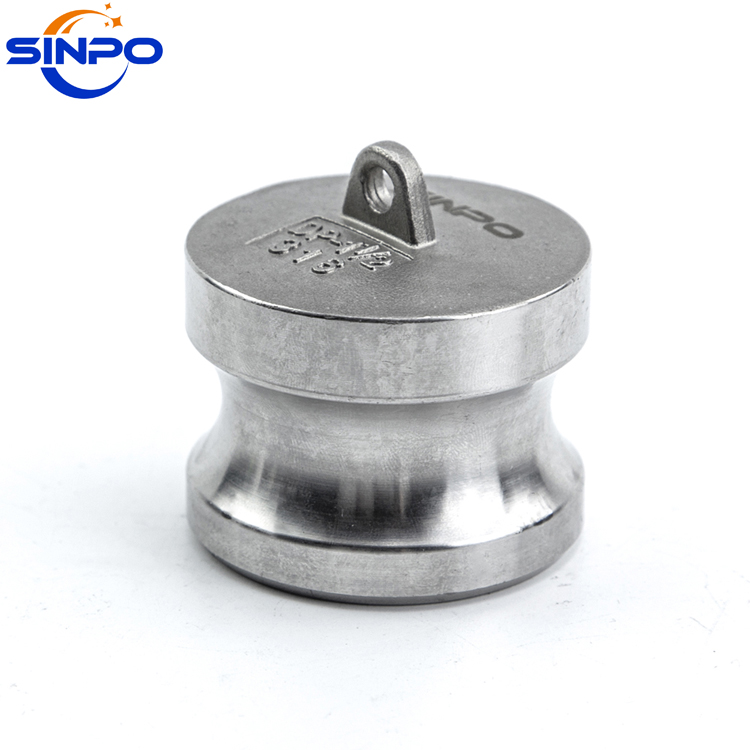

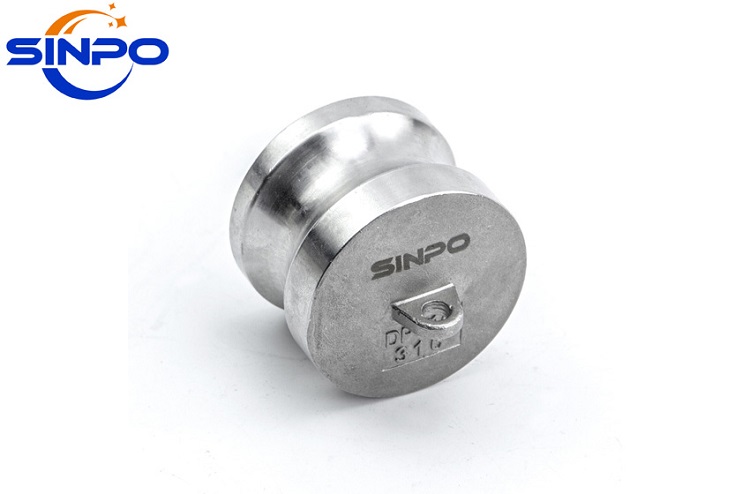

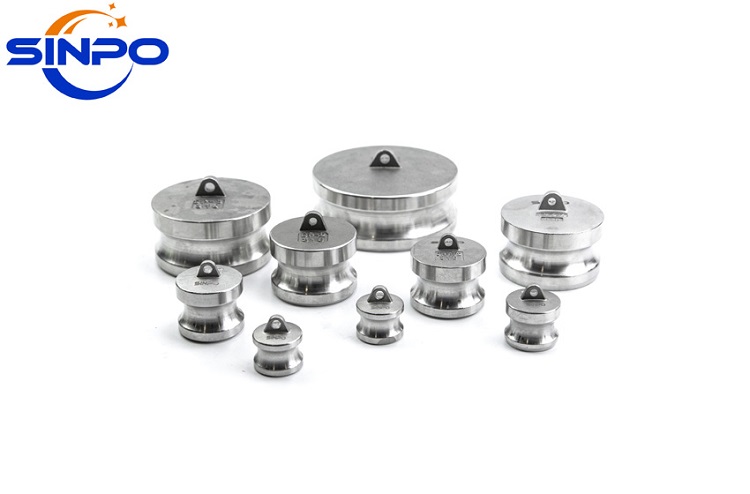

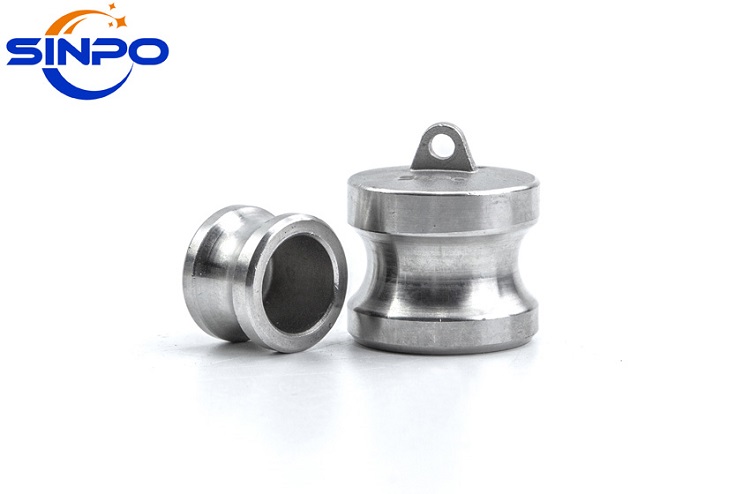

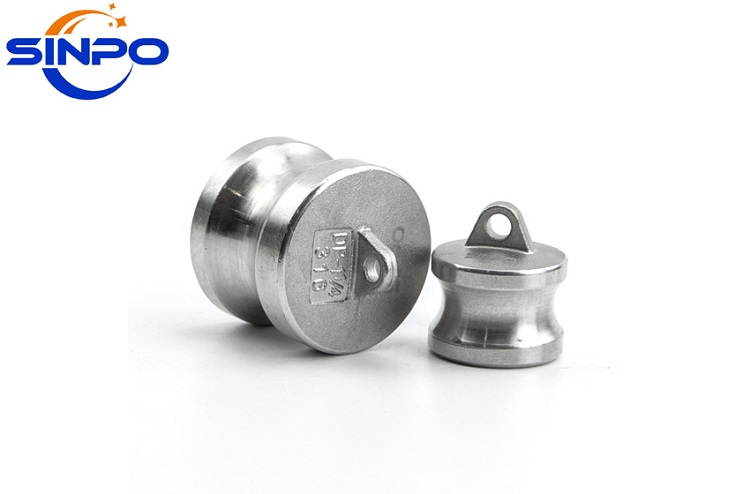

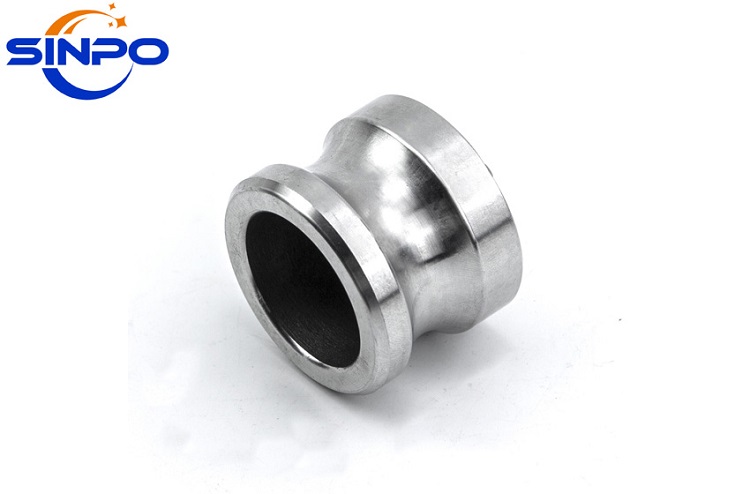

SS camlock coupling type DP has smooth surface and perfect dimensional accuracy, manufactured strictly according to BSPP/ BSPT/ NPT/ DIN standard. It is made of high-quality stainless steel and has very good corrosion resistance, so it can withstand the use of extreme environmental conditions such as high temperature and high pressure, aiming to ensure long-term stable operation of the equipment. The coupling is designed based on the principle of cam locking, so it can provide fast and effective connection under various harsh environmental conditions. Excellent vacuum and pressure ratings enable the product to perform stably in various mechanical equipment, aiming to ensure that the equipment can operate with higher precision. Thanks to the quick connect and disconnect design, the coupling is interchangeable and rescrewable, which means it offers excellent flexibility. Welcome customers in need to come to buy our couplings, we will provide competitive prices!
Features
1. This stainless steel coupling has a delicate connection method, so it can greatly shorten the connection time, improve work efficiency, and save installation and maintenance costs.
2. Since this coupling is made of stainless steel, it has strong corrosion resistance and can be used in various acid and alkali environments, which greatly improves the stability and safety of equipment operation.
3. This coupling has high load capacity and strong reverse torque capacity, so it ensures safe and reliable operation under high-speed rotation.
4. This SS camlock coupling type DP can be widely used in machinery in petroleum, chemical industry, electric power, aerospace and other industries, especially in industries involving production safety and security, because it is very reliable.
Type:2 ss camlock coupling Place of Origin:Zhejiang, China Brand Name:SINPO Application:General Power:Manual | Port Size:1/2 to 6 inch Body material:CF8(304) or CF8M(316) Standard:ANSI, JIS, GB, DIN Certificate:CE, RoHS, ISO9001, TUV Suitable Medium:Water, Oil, Steam, Liquid, etc |
10000 Piece/Pieces per Month
Each product is packed into a plastic bag, then packed into inner box and carton, finally packed into plywood cases or pallets.
Port
Ningbo, Shanghai, etc
Lead Time
Most of the products are in stock, and it takes 15-25 days for products that are not in stock.

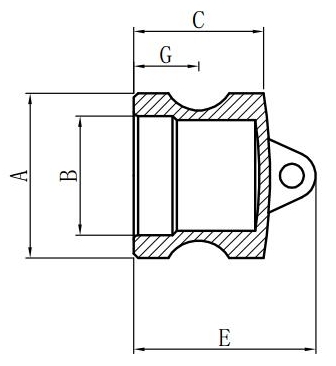

Size | A | B | C | E | G |
1/2" | 32 | 22 | 24.5 | 36 | 11.8 |
3/4" | 32 | 22 | 24.5 | 36 | 11.8 |
1" | 36.3 | 25 | 30 | 41 | 14 |
1 1/4" | 45 | 31 | 38 | 51 | 17.5 |
1 1/2" | 54 | 38 | 41 | 54 | 17.5 |
2" | 63 | 49 | 47 | 61 | 21.5 |
2 1/2" | 75 | 60 | 48 | 62 | 21.5 |
3" | 91 | 76 | 50 | 66 | 22.7 |
4" | 119 | 104 | 50 | 66 | 22.7 |
5" | 145.5 | 128 | 53 | 78 | 23.8 |
6" | 176 | 150 | 61.3 | 89 | 35.7 |

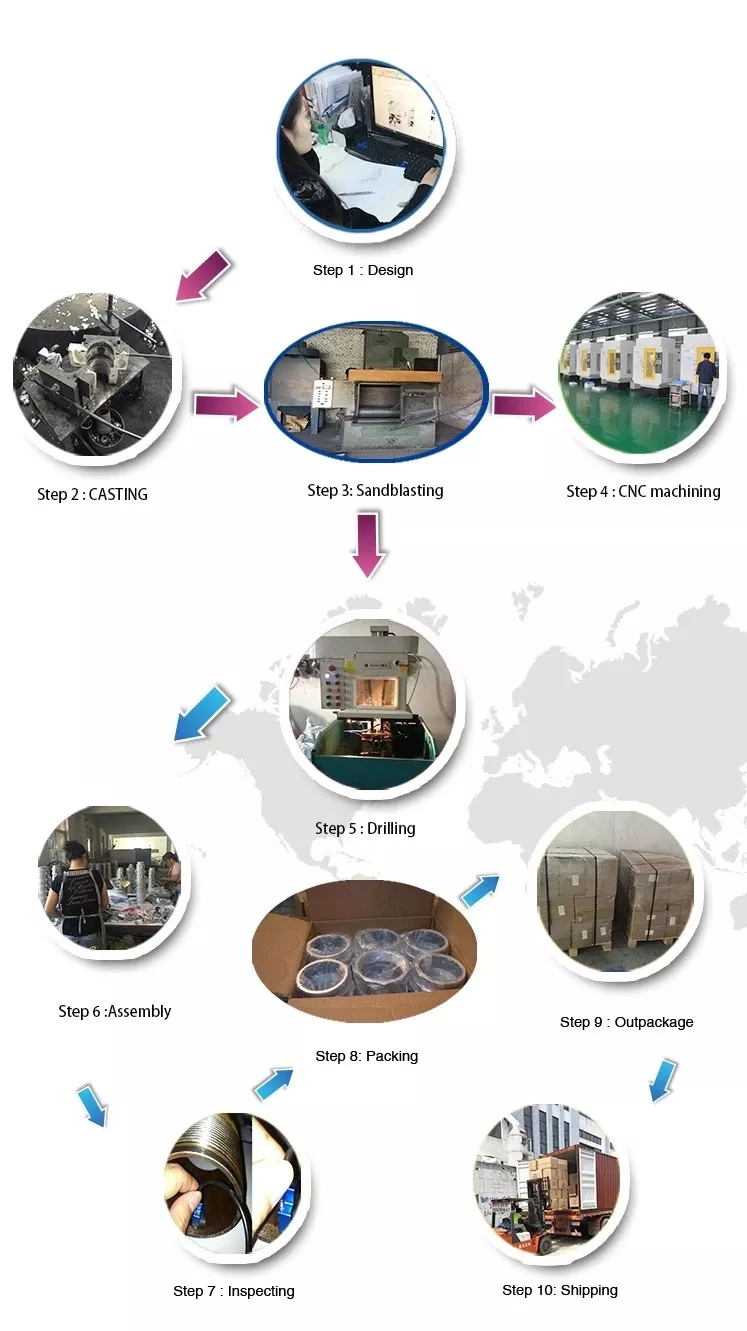

Our staff are all skilled operators, each process is strictly controlled and we have got through the third party inspection. We adopt the international advanced technology, and we have introduced dozens of advanced CNC lathes to ensure the processing technology of products.
1. Package: standard export paper carton and wooden or steel pallet;
2. Shipment: by sea, by air or by express.
1. Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
2. Would you have a discount if l have a large order?
A: Yes we could offer different discount according to your order quantity.
3. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
4. Can I request to change the form of packaging and transportation?
A: Yes, we can change the form of the packaging and transportation as per your request, but you have to bear their own costs incurred during this period and the spreads.
5. Do you have OEM service ?
A: Yes. A variety of products size, quality and quantity can be cutomized according to your needs.
